10-2 Handling and Transportation Rexroth IndraDyn A
10.2 Identification
The total scope of a delivery can be seen in the delivery note or waybill.
However, the contents of a delivery can be distributed over several
packages.
Each individual package can be identified using the shipment label
attached to the outside.
Each device has an individual name plate containing the device
designation and technical information.
⇒ After receiving the goods, compare the ordered and the supplied type.
Submit claims concerning deviation immediately.
10.3 Designation
The type designation of the complete product results from the selected
options. These designations, along with additional product data, are
impressed on the name plate.
Using the designation and the serial number, every Bosch Rexroth
product can be uniquely identified.
TYP: MAF100B-0150-FQ-S0-AG0-05-NR
SN: MAF100-12345
S1
P(N) 7.0 kW
I(N) 11.0 A
n(N)//n max. 2100//6000 min-1
MNR: R911123456
I.Cl. F
V.Cl. R
M(N) 48.0 Nm
IP 65
Brake 100.0 Nm DC 24 V +-10 % 2.00 A
Made in Slovenia
S6/44%
P 12.5 kW
m49kg
3-PHASE INDUCTION MOTOR
FD: 03W27
7800
I.Sy. ECM1
UN(eff) 600 V
3-PHASE INDUCTION MOTOR
TYP: MAD130C-0050-SA-S0-AH0-05-NR
SN: MAD130-12345
FD: 03W27
S1
P(N) 7.5 kW
I(N) 30.0 A
n(N)//n max. 1500//7500 min-1
MNR: R911123456
I.Cl. F
V.CI. R
M(N) 48.0 Nm
IP 65
Brake 100.0 Nm DC 24 V +-10 % 1.50 A
Made in Slovenia
S6/44%
P 15.0 kW
m90kg
R
7800
I.Sy. ECM1
UN(max) 380VAC
Typschilder.EPS

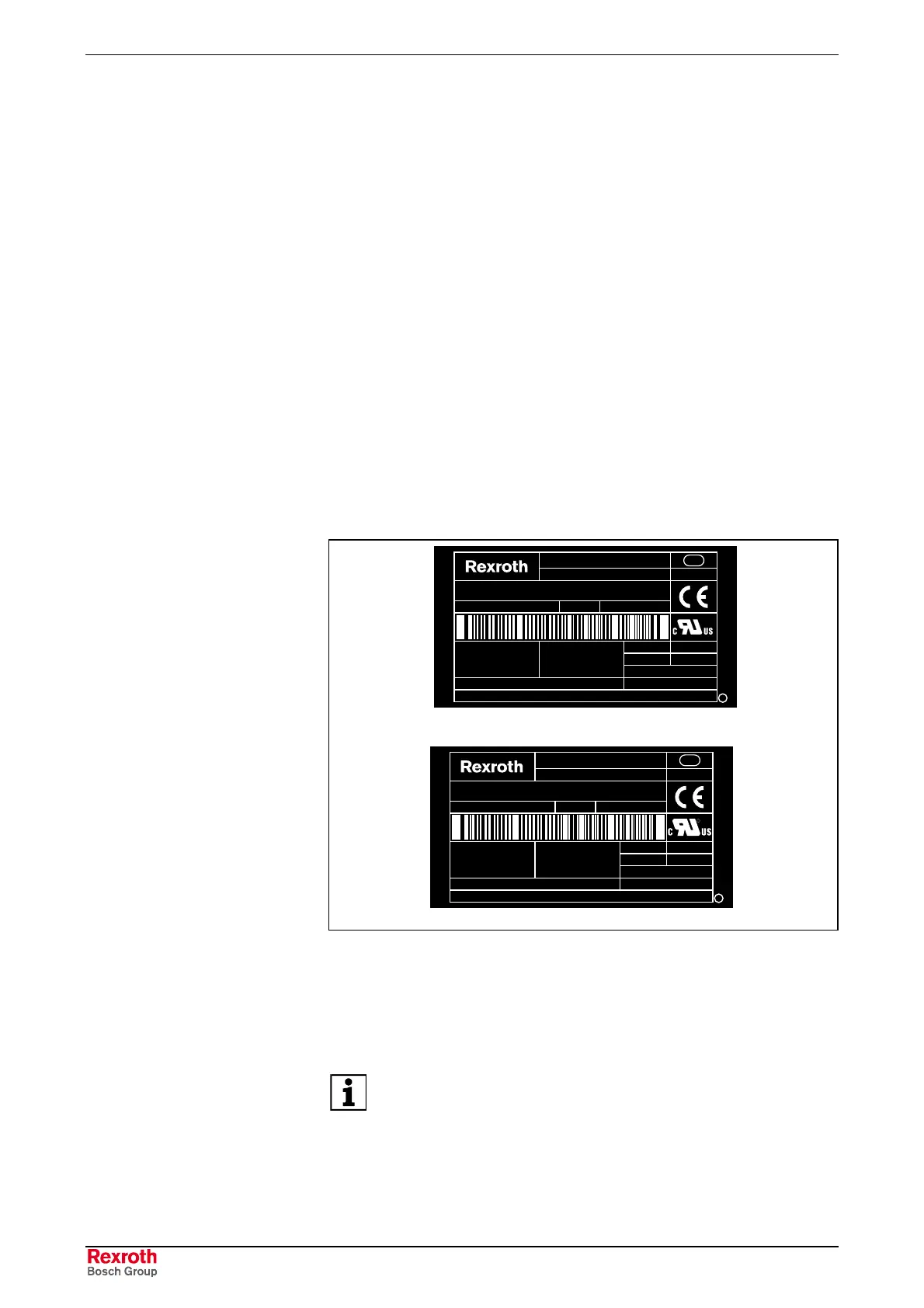

Fig. 10-1: IndraDyn A name plates
IndraDyn A motors are supplied with 2 name plates each.
Attach the second name plate to an easily-visible portion of the machine.
Thus, you’ll be able to read the motor data at any time without having to
get into inaccessible places where the installed motor may be situated.
Before sending questions to Bosch Rexroth, always note the full
type identification data and serial number of the affected products.
