REXROTH IndraDyn A Series User Manual

Rexroth IndraDyn A Technical Data 4-35
Characteristic Curves of MAD180C
MAD180C-0050
0,0
100,0
200,0
300,0
400,0
500,0
600,0
700,0
800,0
0
500
1000 1500 2000 2500 3000
Drehzahl/speed [min-1]
Drehmoment/Torque [Nm]
0
5
10
15
20
25
30
35
Leistung/power [kW]
M
max
M
nenn
P
max
P
nenn
KENNL-MAD180C_0050.FH10
Mit Regelgerät HMS01.1N-W0150 an Versorger HMV01.1E-W0120 an 3xAC400V (-5%)
With Drive Controller HMS01.1N-W0150 at HMV01.1E-W0120 with main connection 3xAC400V (-5%)

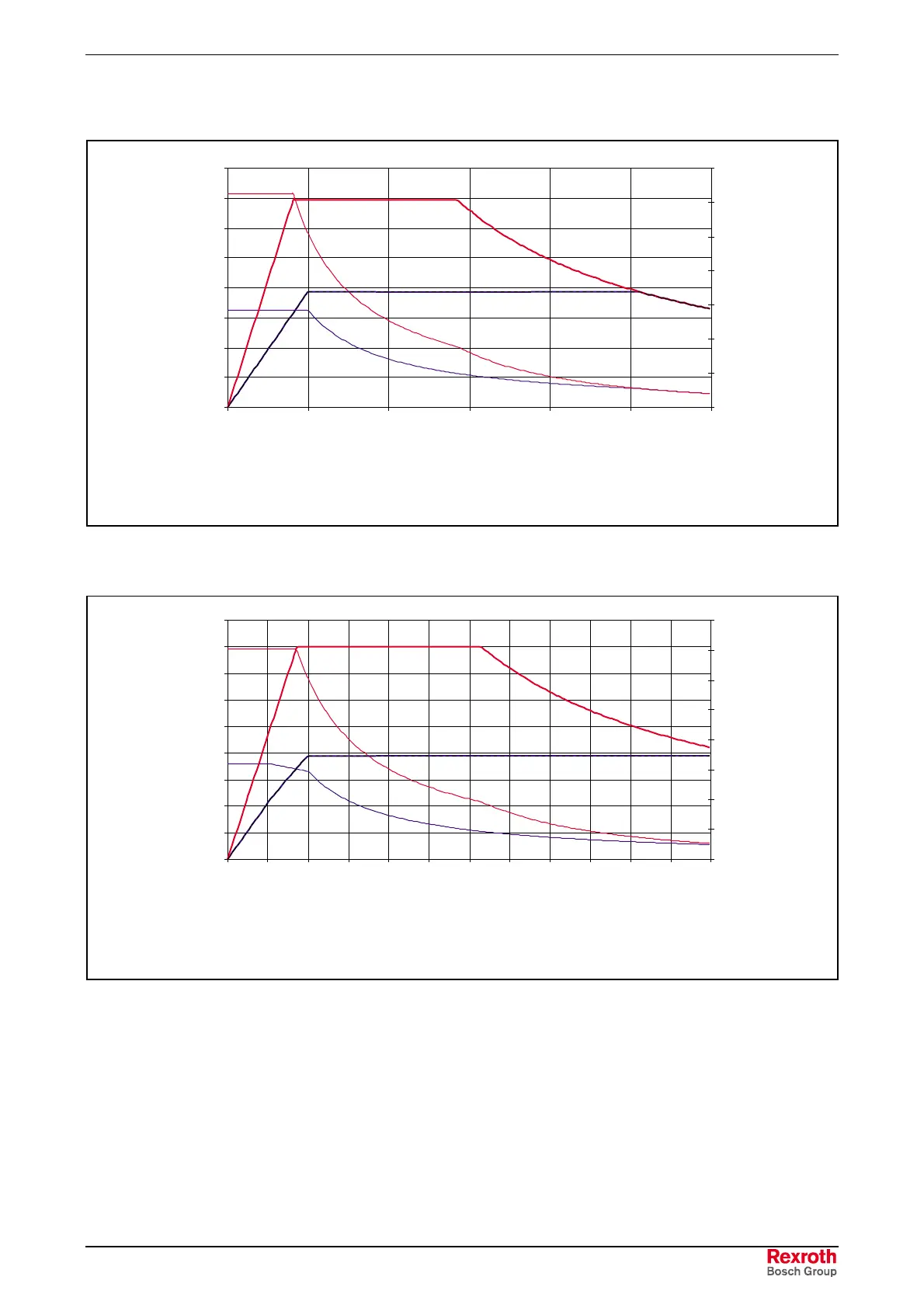

Fig. 4-52: Characteristic curve of MAD180C-0050
MAD180C-0100
0,0
100,0
200,0
300,0
400,0
500,0
600,0
700,0
800,0
900,0
0
500
1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000
Drehzahl/speed [min-1]
Drehmoment/Torque [Nm]
0
10
20
30
40
50
60
70
80
Leistung/power [kW]
M
max
M
nenn
P
max
P
nenn
KENNL-MAD180C_0100.FH10
Mit Regelgerät HMS01.1N-W0210 an Versorger HMV01.1E-W0120 an 3xAC400V (-5%)
With Drive Controller HMS01.1N-W0210 at HMV01.1E-W0120 with main connection 3xAC400V (-5%)
Fig. 4-53: Characteristic curve of MAD180C-0100
