8-12 Connection Techniques Rexroth IndraDyn A
Snap-On Couplings
Another option for the coolant connection is a snap-on coupling which can
also be released at full pressure, as they have integrated leak protection.
2
1
d
i
= 9,6 mm
X
MAF_Liquid_Connect.EPS

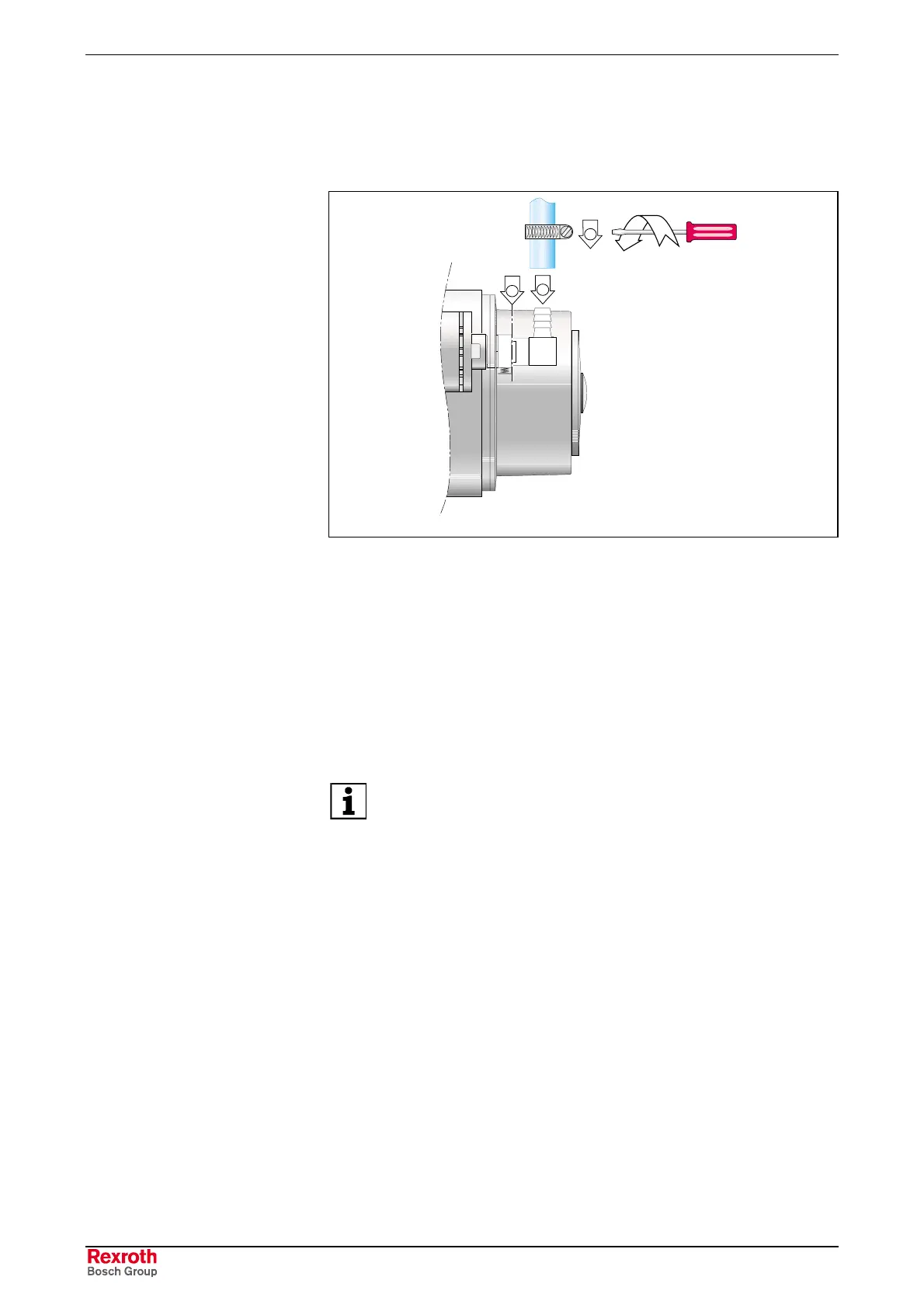

Fig. 8-17: Example of coolant connection of a MAF motor
Proceed as follows:
⇒ Slip the hose on the motor connection (1). Avoid any bending or
damaging of the screwed connection of the motor.
⇒ Screw down the end of the hose over the connection using the hose
clamp (2).
⇒ For service purposes, the factory-attached screwed connection can
be released at point “X”. Press the lock in and withdraw the elbow in
the axial direction. It is not necessary to open the hose connection.
If you use another connection technology on the hose side, other
assembly steps may be required. Refer to the manufacture for information
on assembly.
