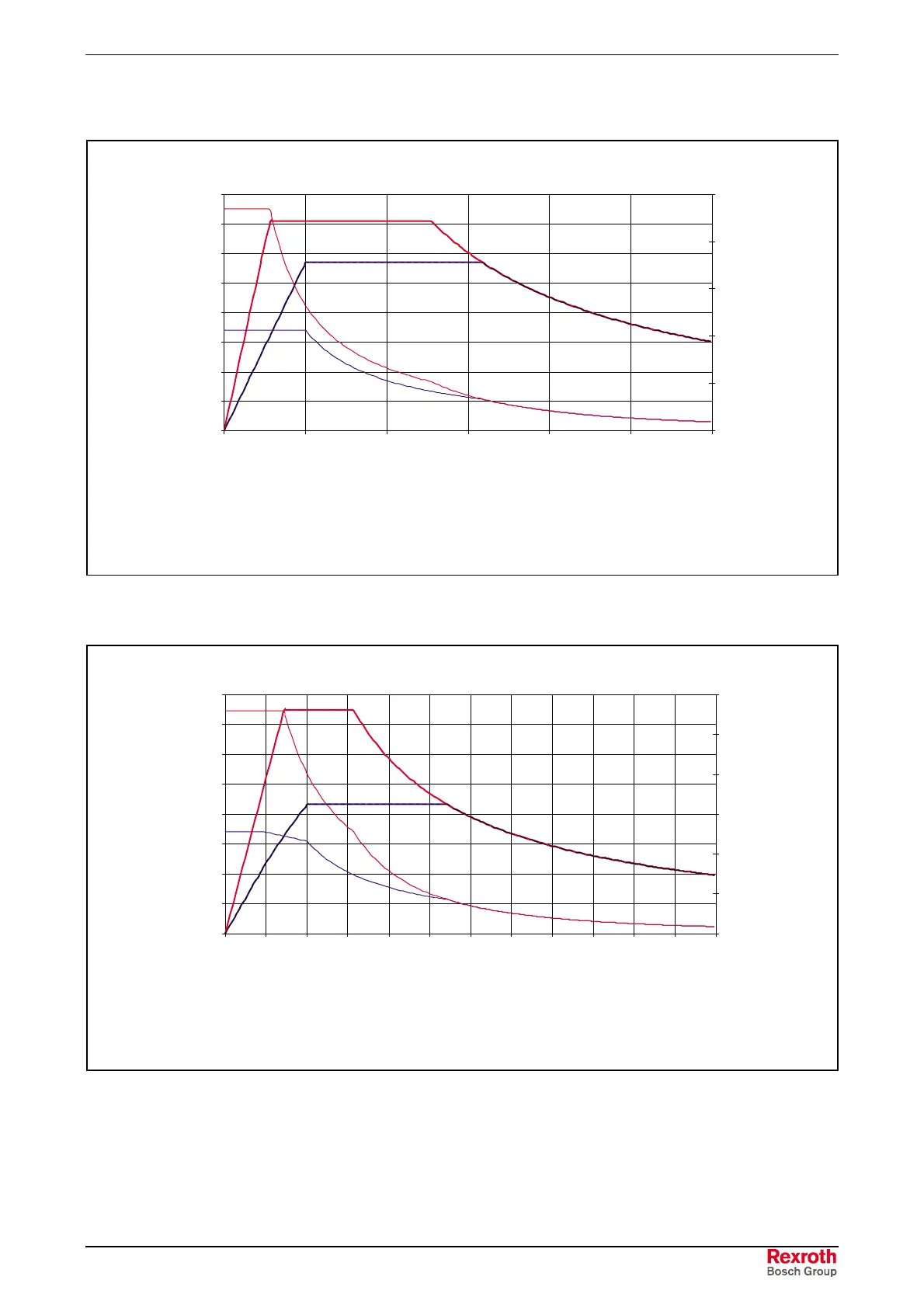

Rexroth IndraDyn A Technical Data 4-5
Characteristic Curves of MAD100B
MAD100B-0050
0,0
10,0
20,0
30,0
40,0
50,0
60,0
70,0
80,0
0
500
1000 1500 2000 2500 3000
Drehzahl/speed [min-1]
Drehmoment/Torque [Nm]
0
0,5
1
1,5
2
2,5
Leistung/power [kW]
M
max
M
nenn
P
max
P
nenn
KENNL-MAD100B_0050.FH10
Mit Regelgerät HMS01.1N-W0020 an Versorger HMV01.1E-W0120 an 3xAC400V (-5%)
With Drive Controller HMS01.1N-W0020 at HMV01.1E-W0120 with main connection 3xAC400V (-5%)
Fig. 4-6: Characteristic curve of MAD100B-0050
MAD100B-0100
0,0
10,0
20,0
30,0
40,0
50,0
60,0
70,0
80,0
0
500
1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000
Drehzahl/speed[min-1]
Drehmoment/Torque [Nm]
0
1
2
3
4
5
6
Leistung/power [kW]
Mit Regelgerät HMS01.1N-W0020 an Versorger HMV01.1E-W0120 an 3xAC400V (-5%)
With Drive Controller HMS01.1N-W0020 at HMV01.1E-W0120 with main connection 3xAC400V (-5%)
KENNL-MAD100B_0100.FH10
M
max
M
nenn
P
max
P
nenn
Fig. 4-7: Characteristic curve of MAD100B-0100
