Rexroth IndraDyn A Type Codes 6-9
1234 6789
1
05 1234 6789
2
05 1234 6789
3
05 1234 6789
4
05
Example:
Abbrev.
Column
MAD160B-0050 -SA-C0 -AH0 - 05-N1
9. Holding brake
9.1 without holding brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 0
9.2 electrically-released, 100 Nm . . . . . . . . . . . . . . . . . . . . . . . . . . = 1
9.3 electrically-released, 240 Nm . . . . . . . . . . . . . . . . . . . . . . . . . . = 3
9.4 electrically-clamped, 100 Nm . . . . . . . . . . . . . . . . . . . . . . . . . . = 5
10. Mounting style
10.1 Flange mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 05
10.2 Flange and foot mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 35
11. Bearings
11.1 Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = N
11.2 reinforced bearings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = V
11.3 for clutch mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = R
12. Vibration severity grade
12.1 R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 1
12.2 S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 2
12.3 S1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 3
Note:
Looking from front onto driven shaft (see picture 1)
Electrical connection "F" and "K" at mounting style "35" is only available on top
Vibration severity grade "S1" is only available with bearings "N"
3
2
1
Picture 1
Position of power connection = top
B-side
right
left
A-side
3
RNC-41171-600_NOR_E_D0_2004-09-174.EPS

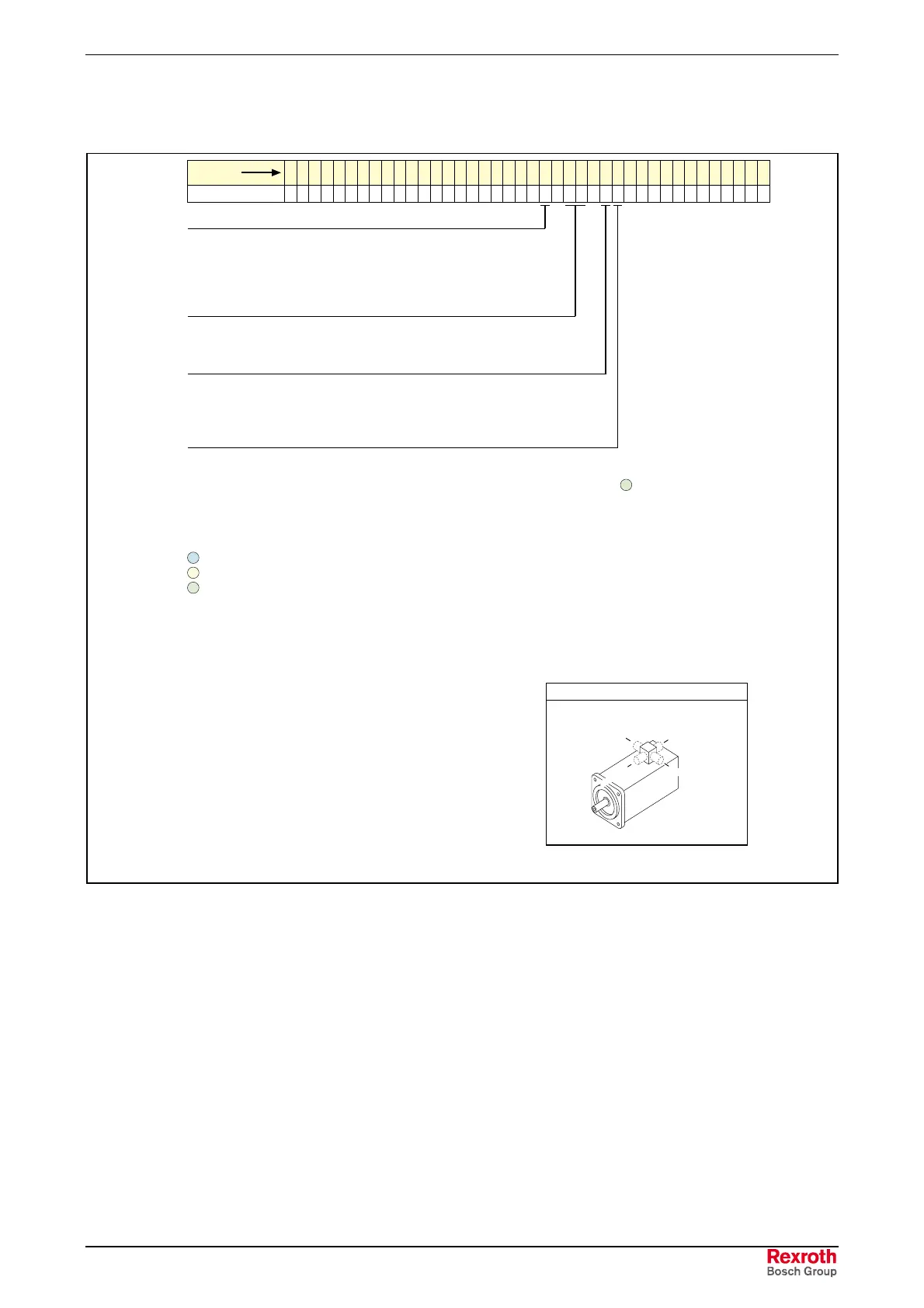

Fig. 6-9: Type code for MAD160 (2/2)
