SERVICE LEVEL FUNCTIONS 14 June, 2002
5-22
3. Select an item from the menu with the ( or ) key.

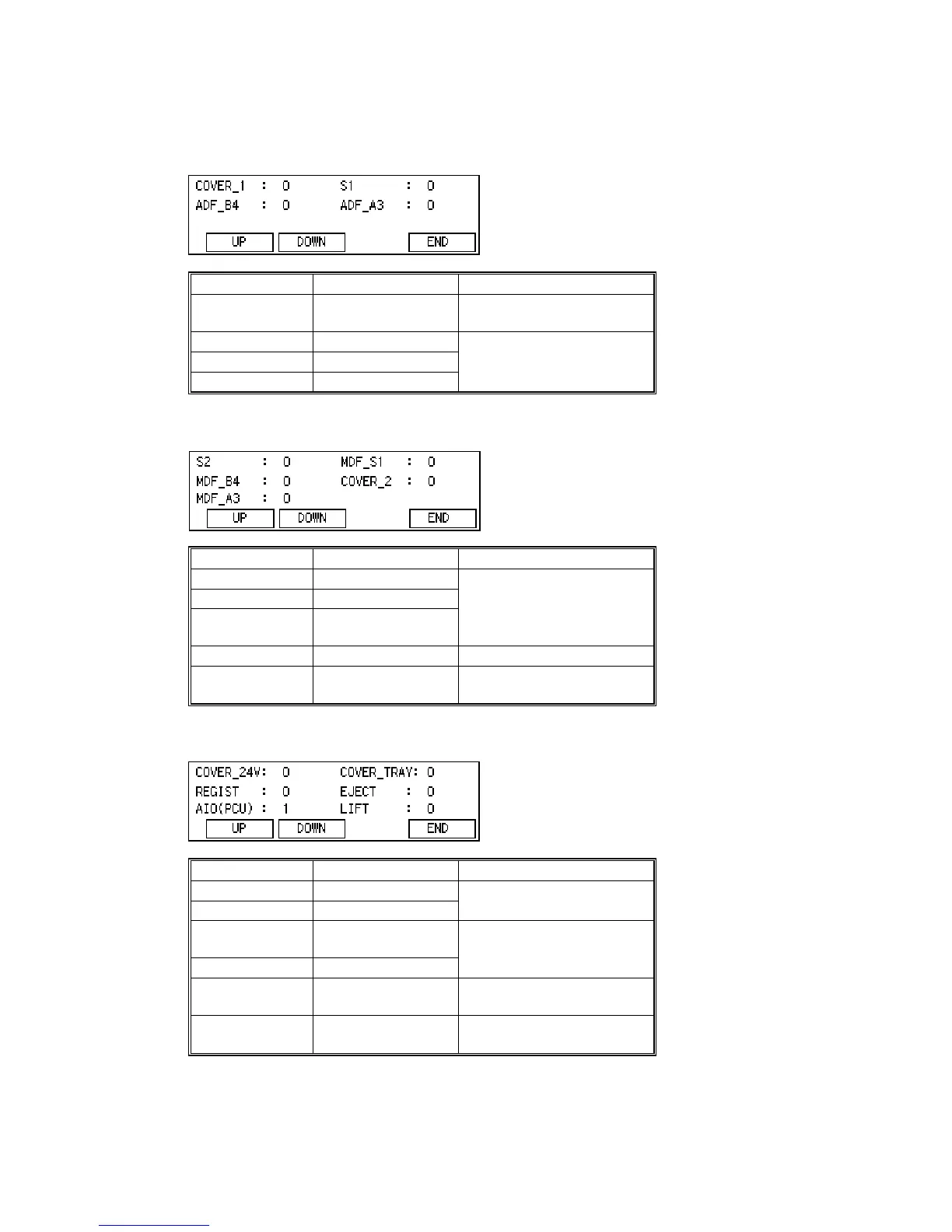

- 2nd Screen -
Item Description Status
COVER_1 ADF Upper Cover
0: Closed
1: Open
S1 S1 Sensor
ADF_B4 B4 Width Sensor
ADF_A3 A3 Width Sensor
0: No document
1: Document present
- 3rd Screen -
Item Description Status
S2 S2 Sensor
MDF_S1 MDF S1 Sensor
MDF_B4
MDF B4 Width
Sensor
0: No document
1: Document present
COVER_2 ADF Unit Cover 0: Closed, 1: Open
MDF_A3
MDF A3 Width
Sensor
0: No Document
1: Document present
- 4th Screen -
Item Description Status
COVER_24V Left Cover
COVER_TRAY Left Tray Cover
0: Closed
1: Open
REGIST
Registration
Sensor
EJECT Paper Exit Sensor
0: No Paper
1: Paper Present
AIO (PCU) AIO Sensor
0: No AIO
1: AIO Present
LIFT
Upper Limit
Sensor
0: Not Detected
1: Detect
