14 June, 2002 SERVICE LEVEL FUNCTIONS
5-23
Service
Tables

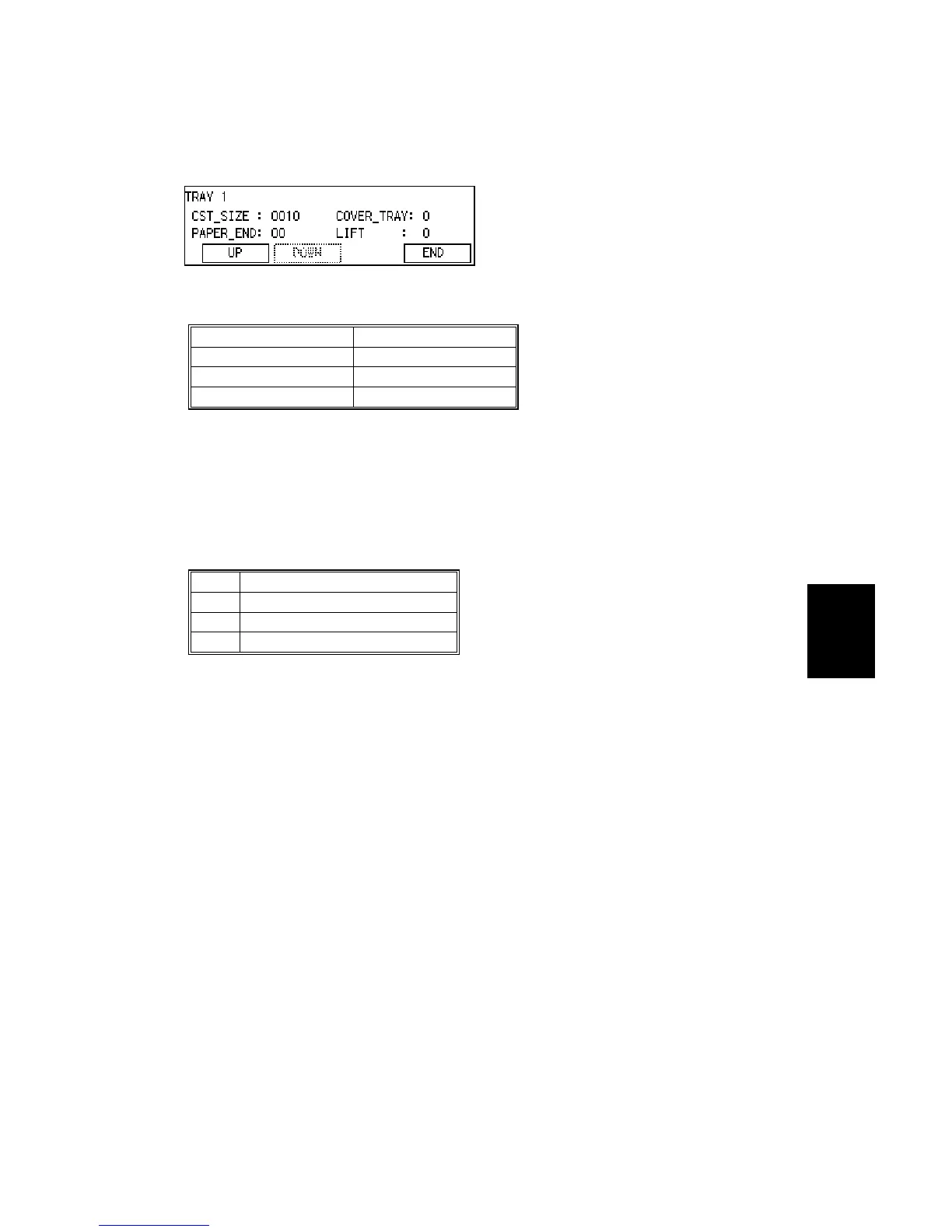

- 5th Screen -
• CST_SIZE: Paper Size (Optional PFU)
A3: 0010 A5 LEF: 1100
LT SEF: 0001 A4 SEF: 0100
LG SEF: 0101 A4 LEF: 0000
LT LEF: 0111
• COVER TRAY: Left Cover
0: Closed
1: Open
• PAPER_END: Paper End/Paper Near End Sensor
X0: No Paper
X1: Paper Present
0X: Not Near End
1X: Near End
When the tray is opened, the value above is displayed temporarily, but “00” is
displayed as a result of the bottom plate is lowering slightly.
• LIFT: Upper Limit Sensor
0: Not Detected
1: Detected
