Two-tray paper feed unit:

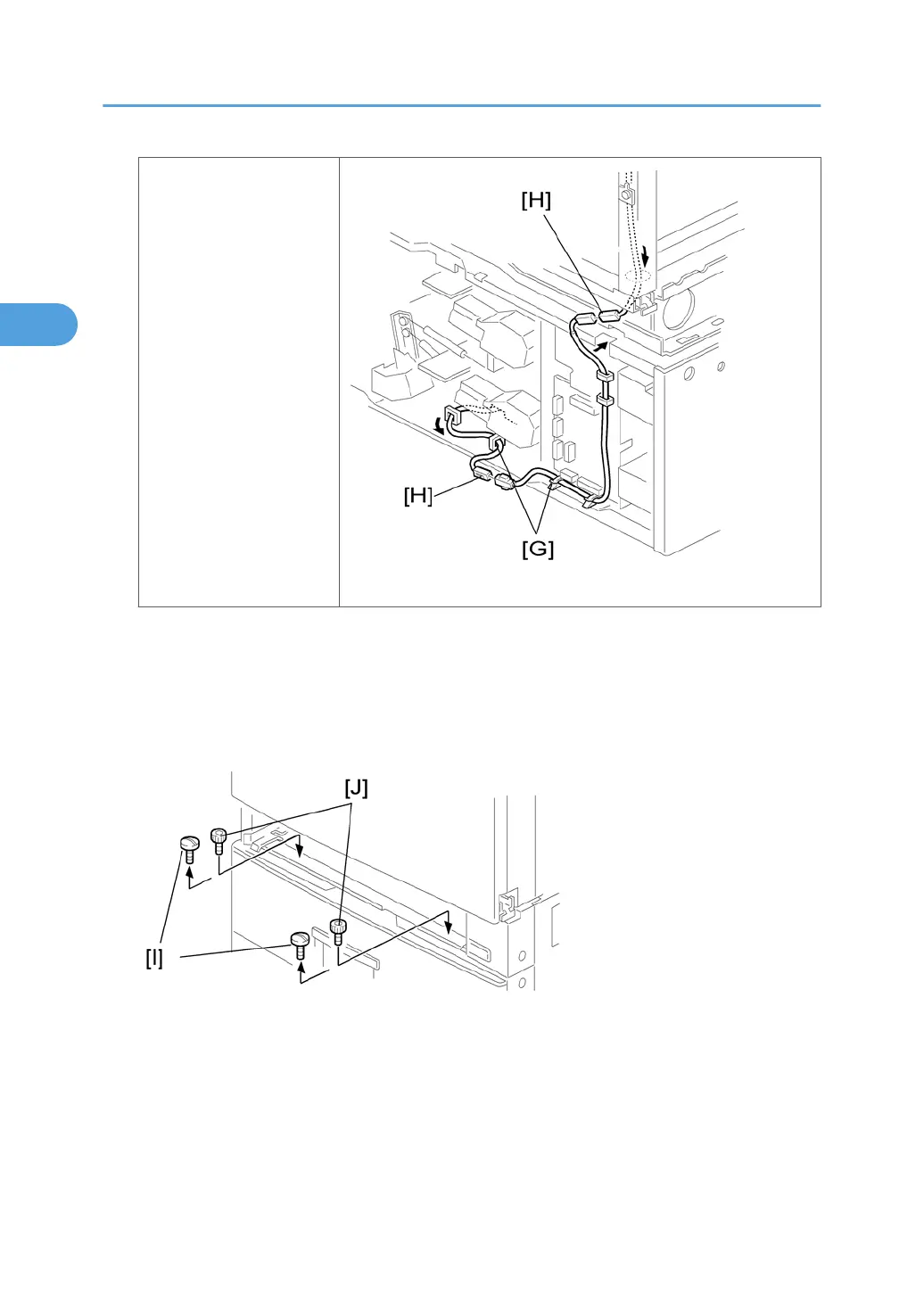

6. Clamp the cables [G], as shown.
7. Join the connectors [H].
8. Two-tray unit only: Reinstall the cable guide.
9. One-tray copier model (B268/B276): Remove the 1st tray cassette.
Two-tray copier models (B244/B269/B277): Remove the 2nd tray cassette.
10. Remove the two screws [I] and install the two hexagonal socket screws [J].
11. Reinstall the 1st tray/2nd tray(s) and rear cover.
