Ricoh Aficio MP 1600L2 - Lower Tray Heater (Two-Tray Model Only)

Lower Tray Heater (Two-tray Model Only)

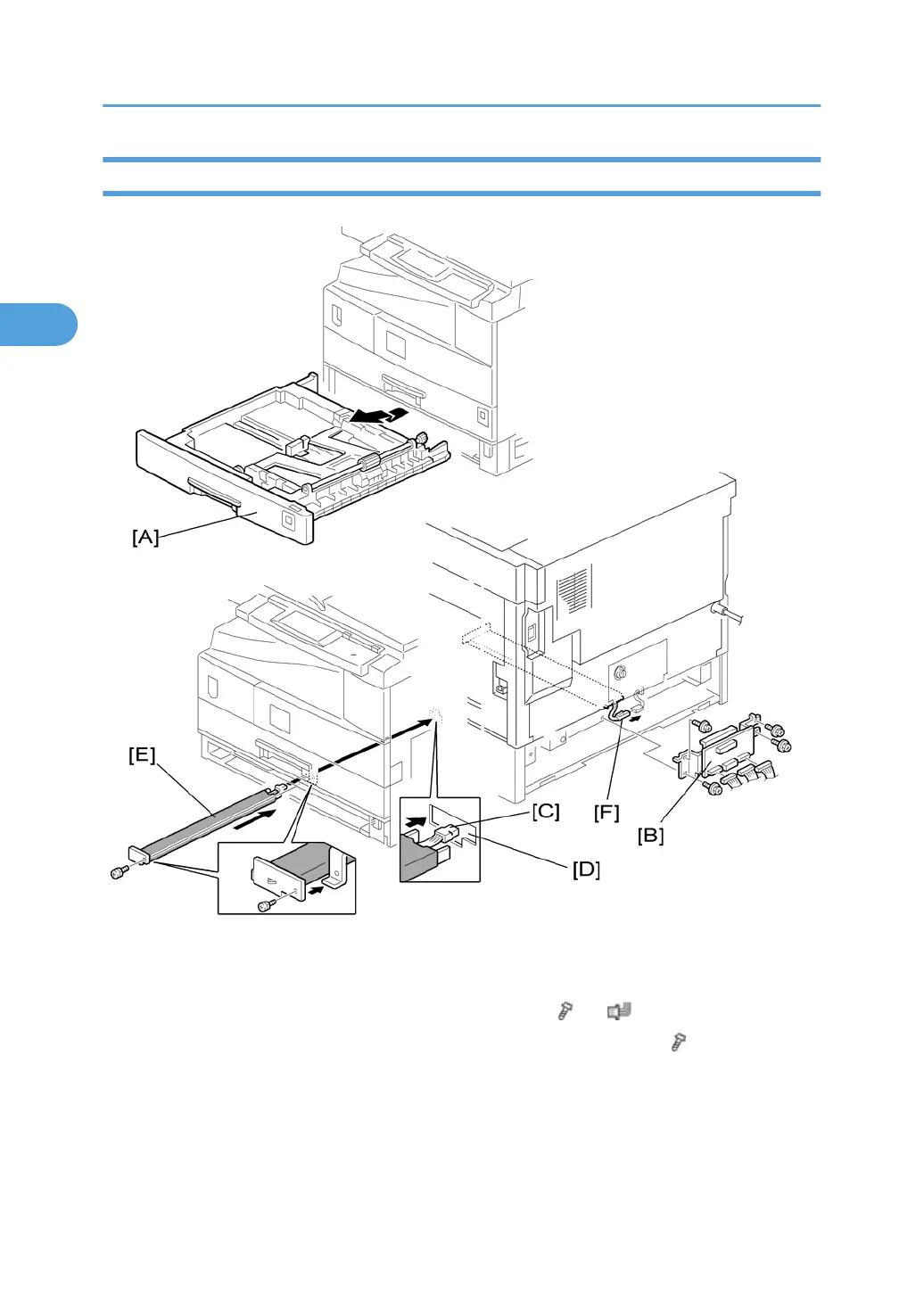

1. Remove the 2nd tray cassette [A].
2. Remove the rear lower cover.
3. B244/B269/B277 only: Remove the DCB [B] with bracket ( x 4, x 3).
4. Pass the connector [C] through the opening [D] and install the tray heater [E] ( x 1).
5. Join the connectors [F].
6. Reinstall the 2nd tray cassette, DCB, and rear lower cover.
