Duplex Unit (Duplex Models B244/B269/B277
Only)
Duplex Exit Sensor

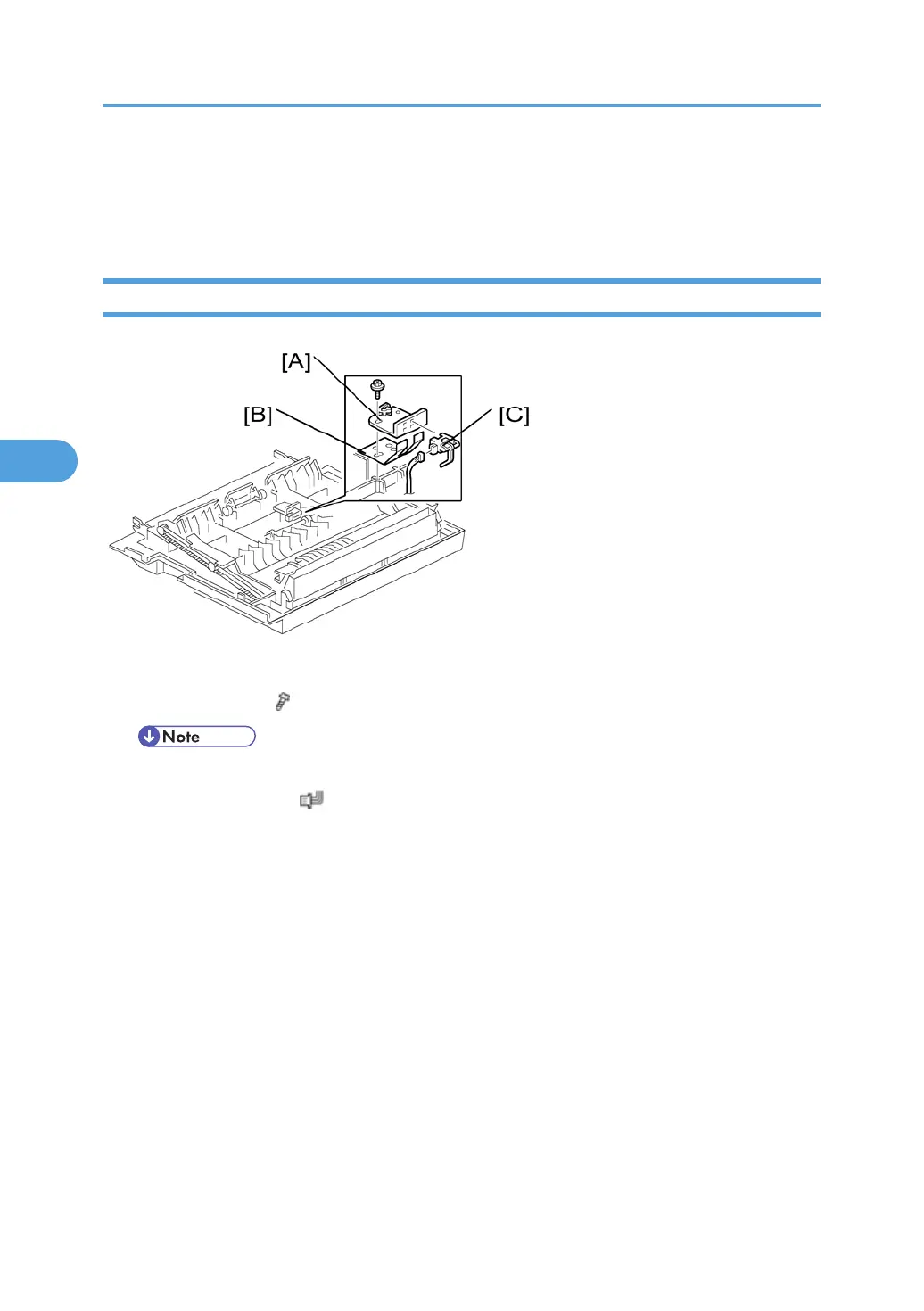

1. Open the right door.
2. Sensor bracket [A] ( x 1)
Another bracket [B] comes off with the sensor bracket.
3. Duplex exit sensor [C] ( x 1)
4. Replacement and Adjustment
128
