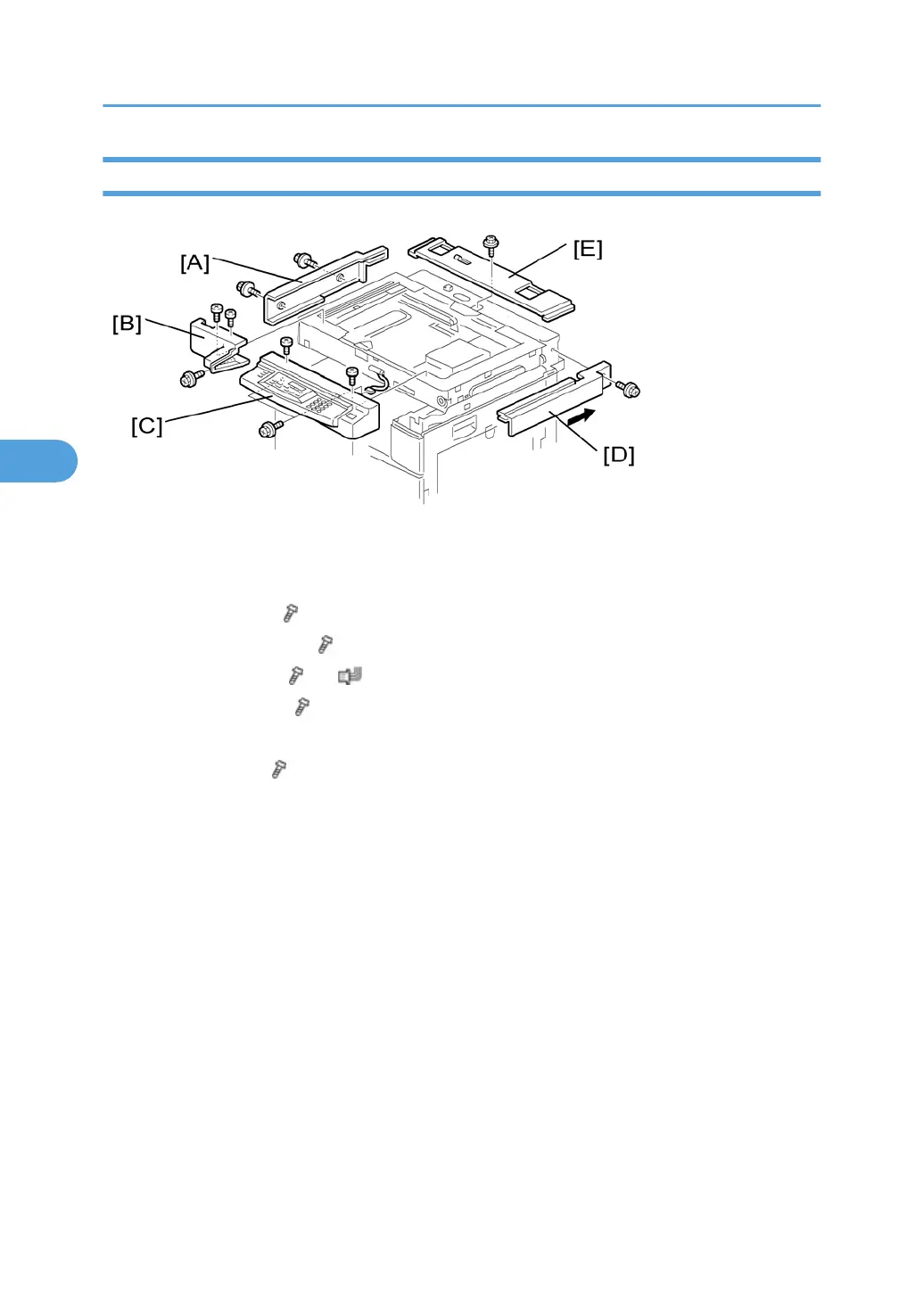

Upper Covers
1. Platen Cover, ARDF, or ADF (if installed)
2. Rear cover
3. Left upper cover [A] ( x 2)
4. Front upper left cover [B] ( x 3)
5. Operation panel [C] ( x 4, x 1)
6. Right upper cover [D] ( x 1, 3 hooks)
7. Push the cover to the rear side to release the hooks.
8. Top rear cover [E] ( x 1)
4. Replacement and Adjustment
78
4
