Ricoh Aficio MP 1600L2 - Paper Feed Section; Paper Feed Roller

Paper Feed Section
Paper Feed Roller

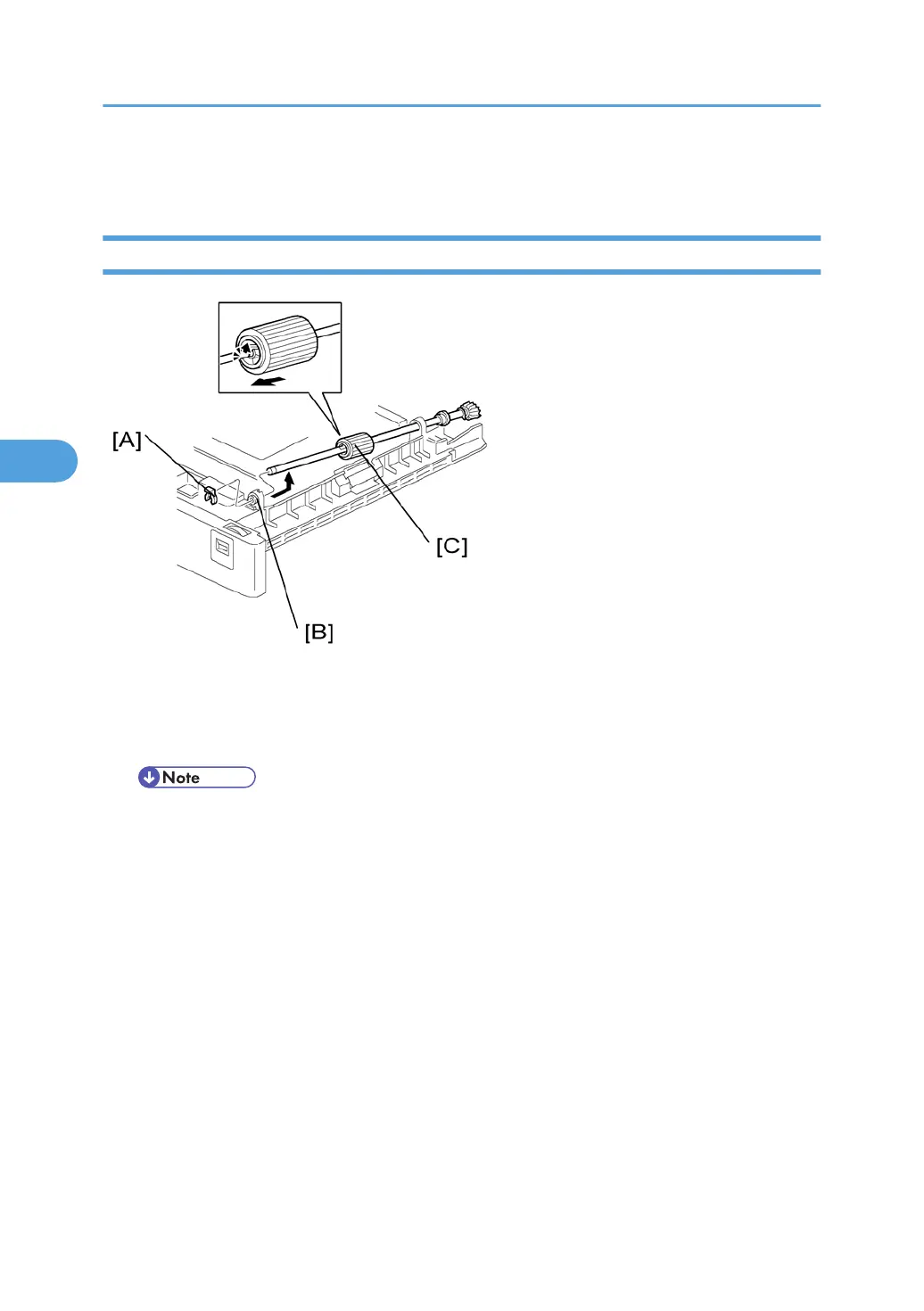

1. Paper cassette
2. Clip [A]
3. Push the shaft back through the opening, and tilt it up.
• If the black plastic bushing [B] comes off, make sure you remount it when reinstall the shaft.
4. Paper feed roller [C]
