Ricoh Aficio MP 1600L2 - Left Exhaust Fan

• Make sure that the arrow on the fan [B] points the outside of the copier when you reassemble The
arrow indicates the direction of the air current.

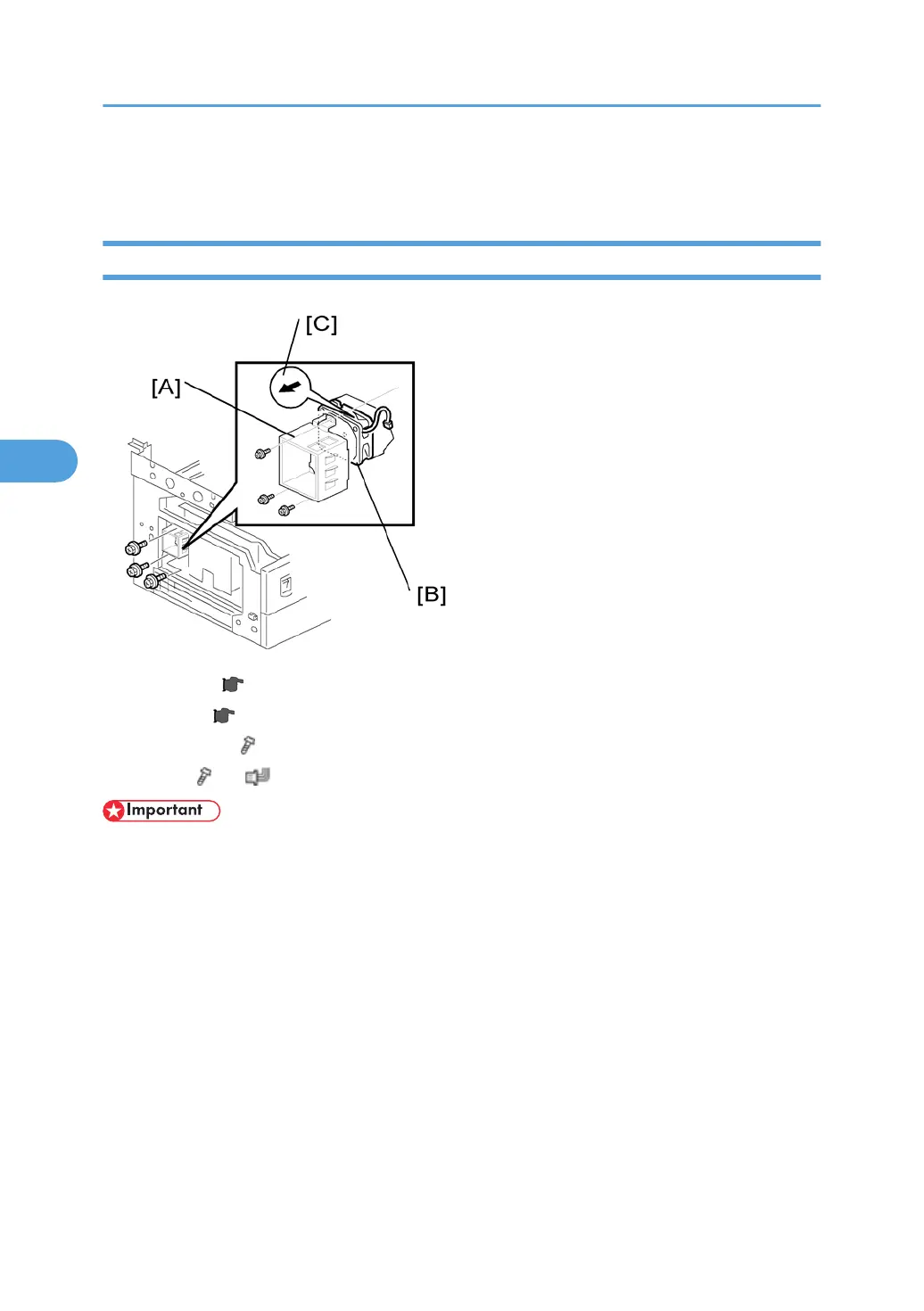

Left Exhaust Fan
1. Rear cover ( p.76)
2. Left cover ( p.79)
3. Fan cover [A] ( x 3)
4. Fan [B] ( x 3, x 1)
• Reassembling -
• Make sure that the arrow on the fan [C] points the outside of the copier when you reassemble. The
arrow indicates the direction of the air current.
4. Replacement and Adjustment
136
4
