3. Pull out the (upper) paper tray.
4. Front cover ( p.79)
5. Laser unit [A] ( x 2, x 4)
The screw at the left front position [B] is longer than the other three.

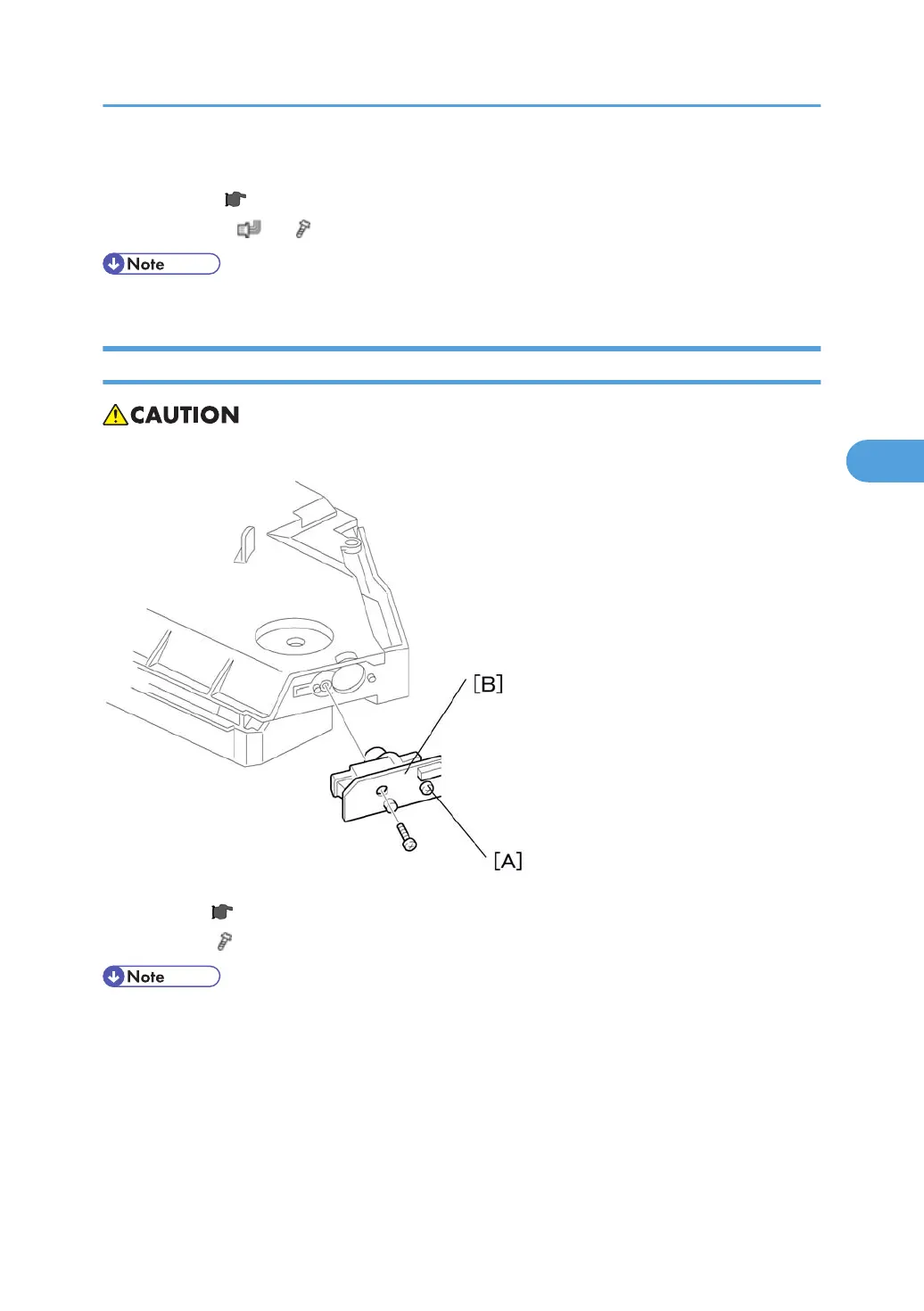

LD Unit
Do not touch the paint-locked screw [A]. The LD position is adjusted before shipment.
1. Laser unit ( p.96)
2. LD unit [B] ( x 1)
Do not screw the LD unit in too tightly when you install it.
Laser Unit
97
4
