Exterior Covers & Operation Panel

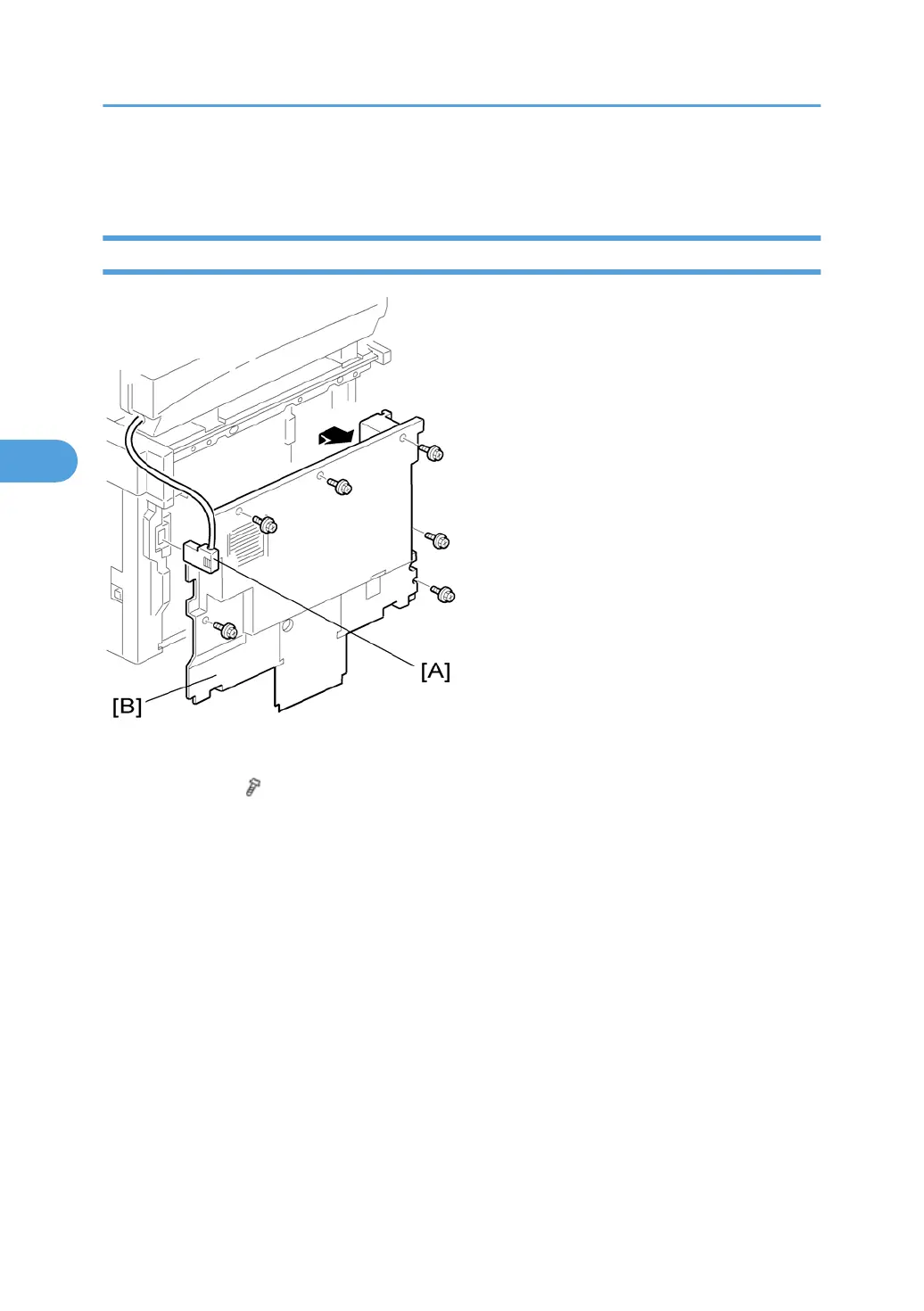

Rear Cover
1. Unplug the DF cable [A] (if installed).
2. Rear cover [B] ( x 6)
4. Replacement and Adjustment
76
4
