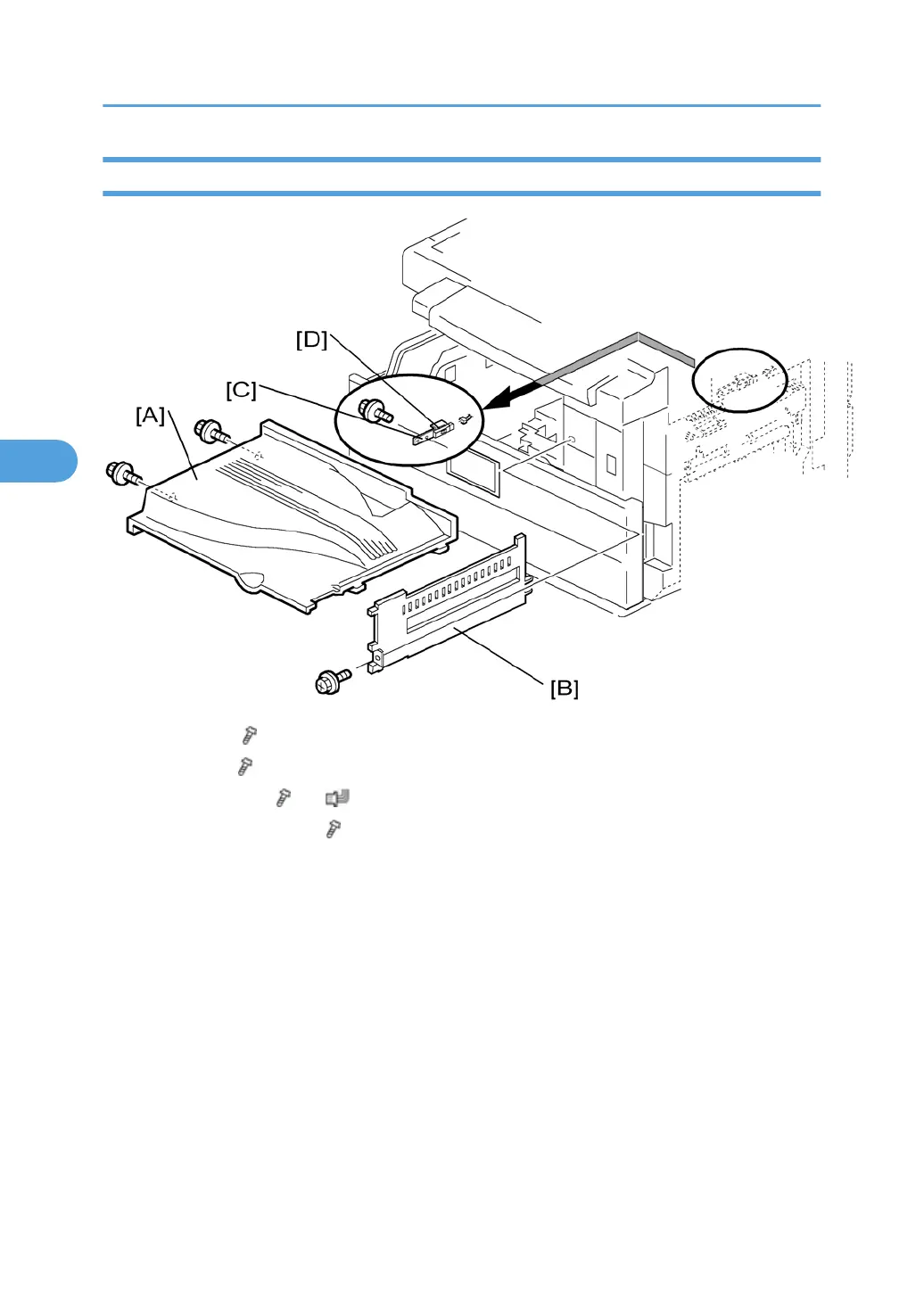

Duplex Inverter Sensor
1. Copy tray [A] ( x 2)
2. Exit cover [B] ( x 1)
3. Sensor bracket [C] ( x 1, x 1)
4. Duplex inverter sensor [D] ( x 1)
4. Replacement and Adjustment
130
4
