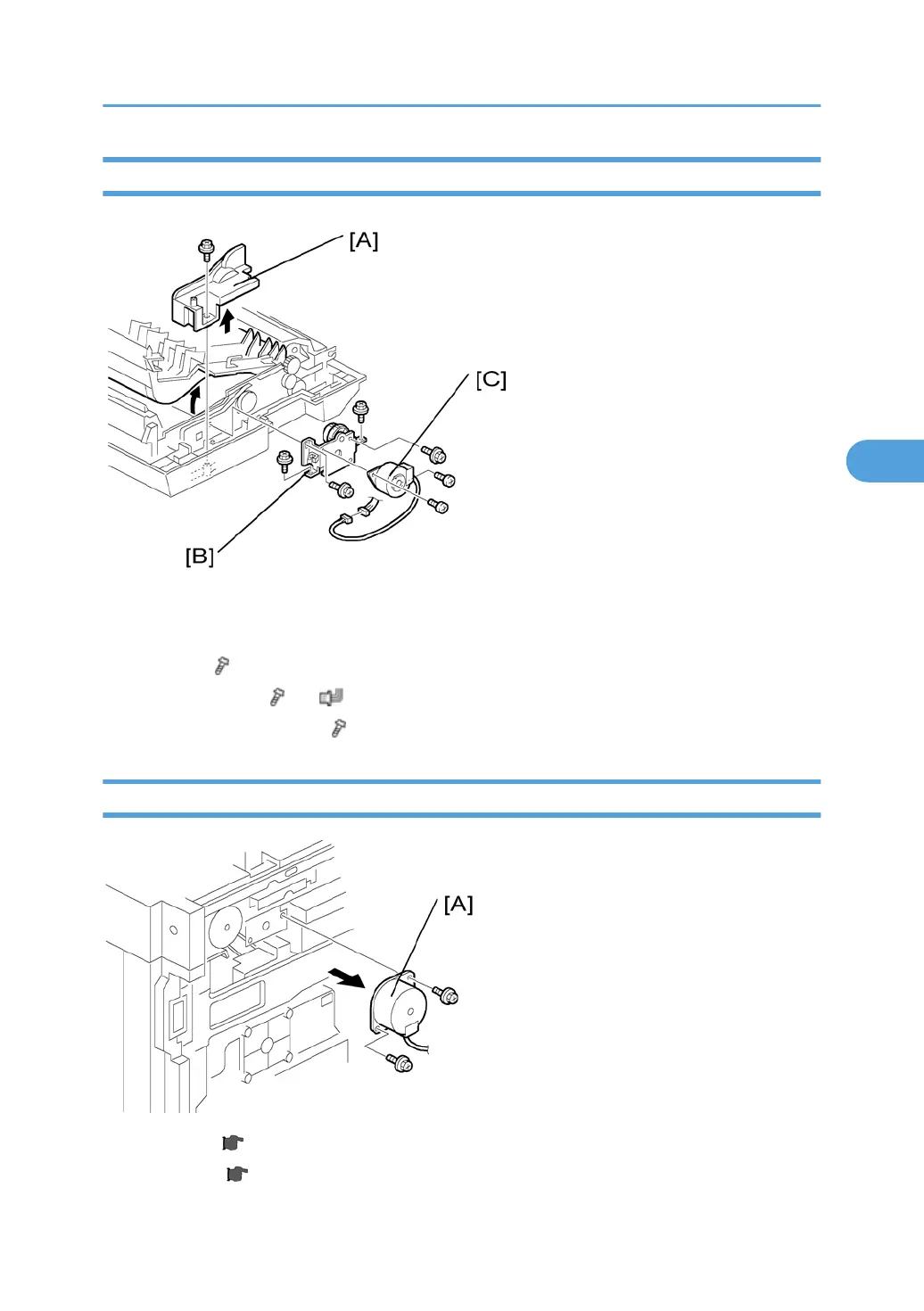

Duplex Transport Motor
1. Open the right door.
2. Detach the chain and spring from the frame, and lower the right door.
3. Cover [A] ( x 1)
4. Motor bracket [B] ( x 4, x 1).
5. Duplex transport motor [C] ( x 2)
Duplex Inverter Motor
1. Rear cover ( p.76)
2. Exhaust fan ( p.135)
Duplex Unit (Duplex Models B244/B269/B277 Only)
131
4
