Ricoh Aficio MP 1600L2 - Scanner Unit; Exposure Glass;Df Exposure Glass

Scanner Unit
Exposure Glass/DF Exposure Glass

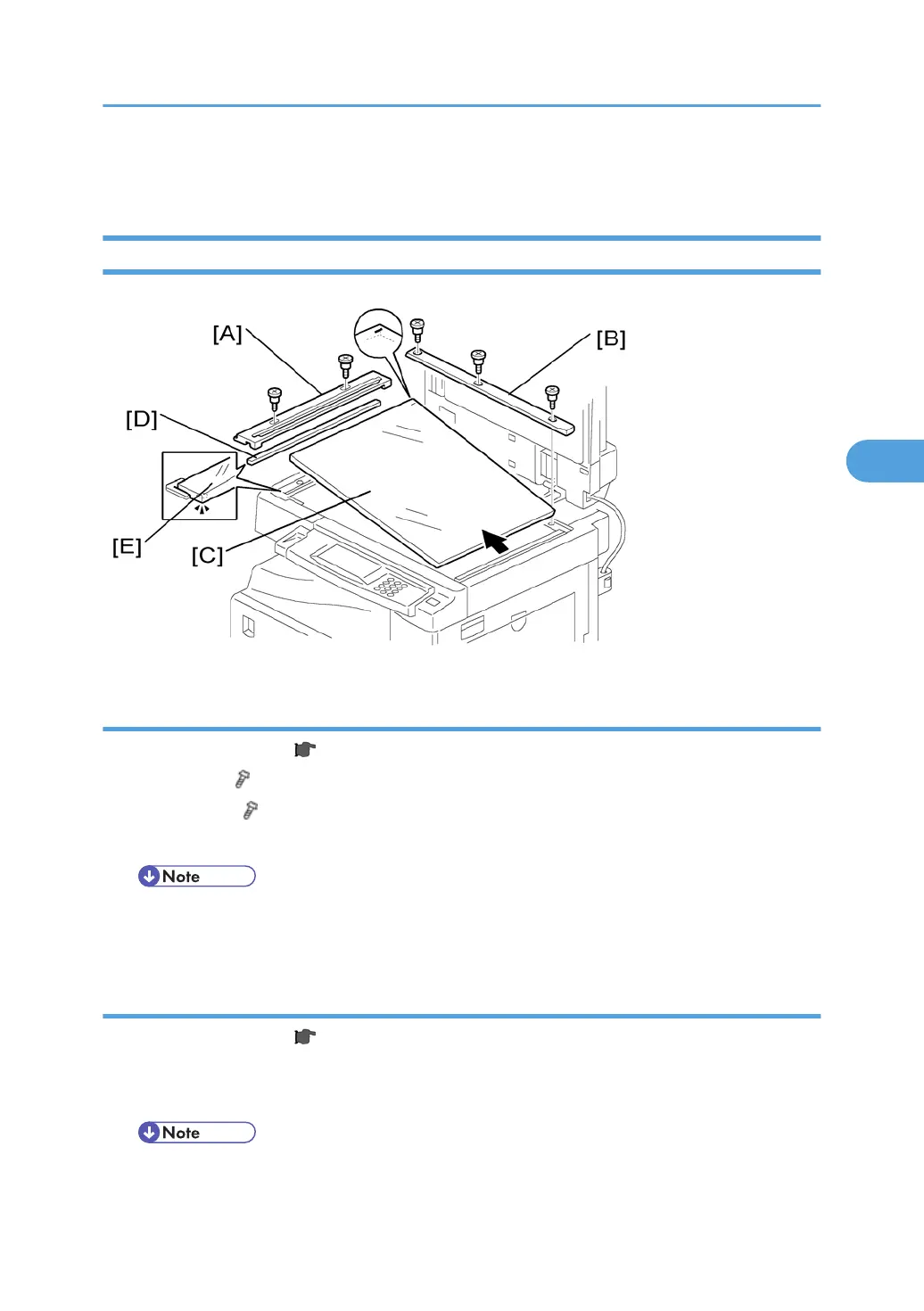

Exposure Glass
1. Front upper left cover ( p.78 "Upper Covers")
2. Left scale [A] ( x 2)
3. Rear scale [B] ( x 3)
4. Exposure glass [C]
• Make sure that the mark is at the rear left corner, and that the left edge is aligned to the support
on the frame when you reinstall the exposure glass.
DF Exposure Glass
1. Front upper left cover ( p.78 "Upper Covers")
2. Left scale [A]
3. DF exposure glass [D]
• Make sure that the mark [E] is on the bottom at the front end when reinstall the exposure glass.
Scanner Unit
