3. Pass the connector [B] through the opening [C] and install the tray heater [D] ( x 1).

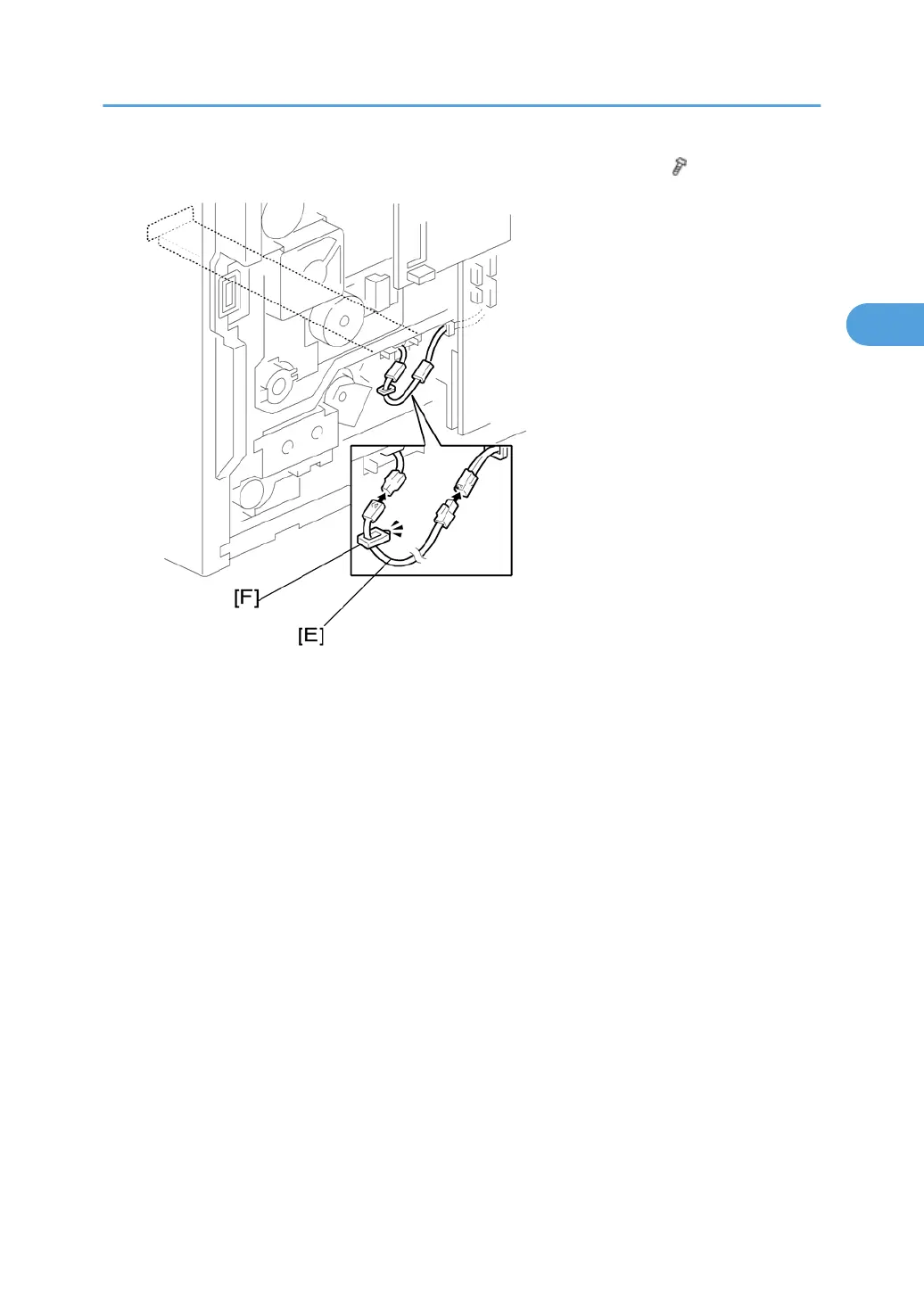

4. Install the relay harness [E].
5. Fix the harness with the clamp [F].
6. Reinstall the 1st tray cassette and the rear cover.
Tray Heaters
