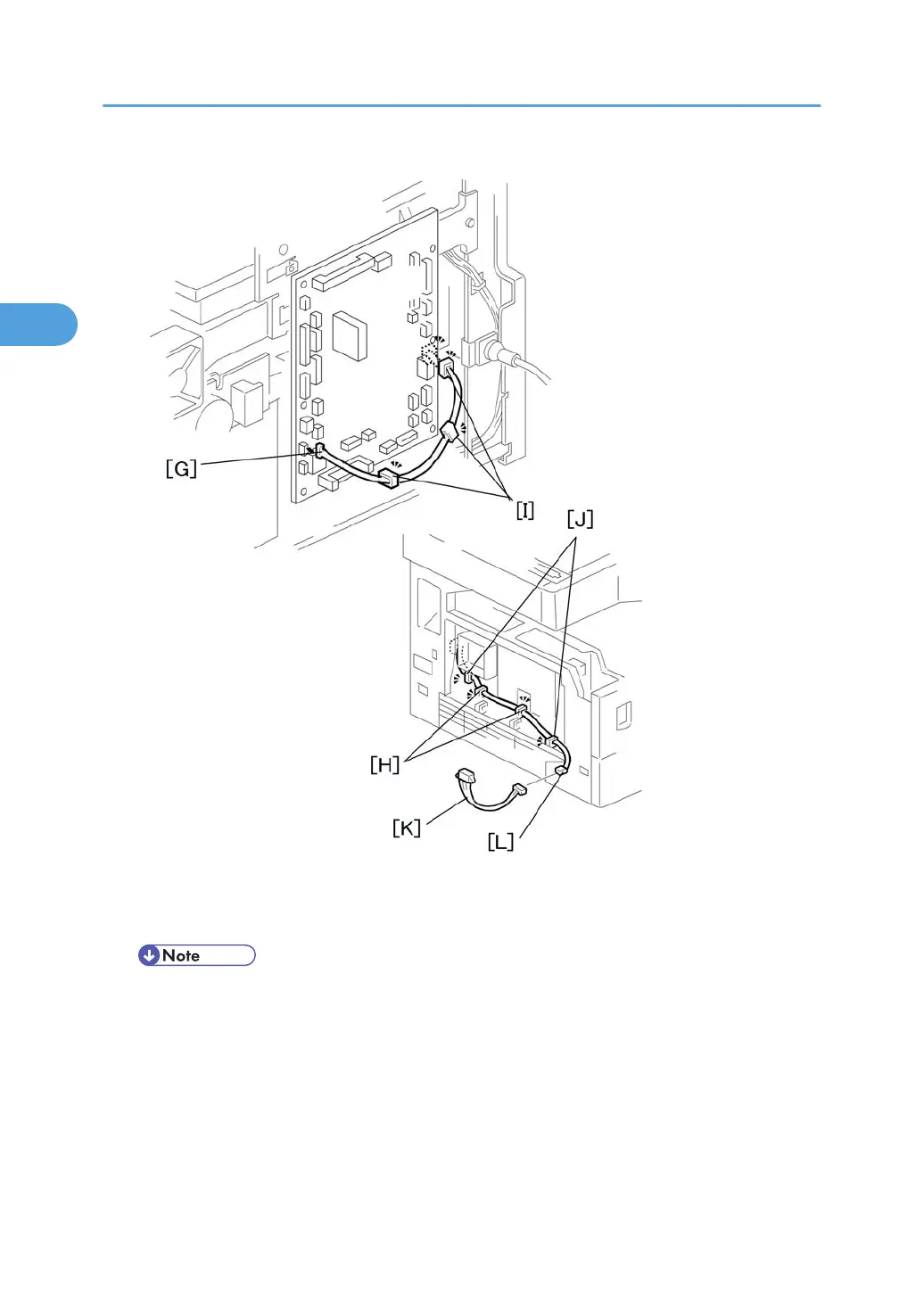

8. Connect the connector [G] to CN126 on the BICU.
9. Hold the harness with the clamps [H][I][J].
• The relay harness is not included in the key counter bracket accessories
10. Join the relay harness [K] with the connector [L].
11. Reinstall the rear cover.
