2. Original width sensor [A] ( x 1, x 1)
3. Lens block ( p.86)
4. Original length sensor [B] ( x 1, x 1)
Sensor Positions

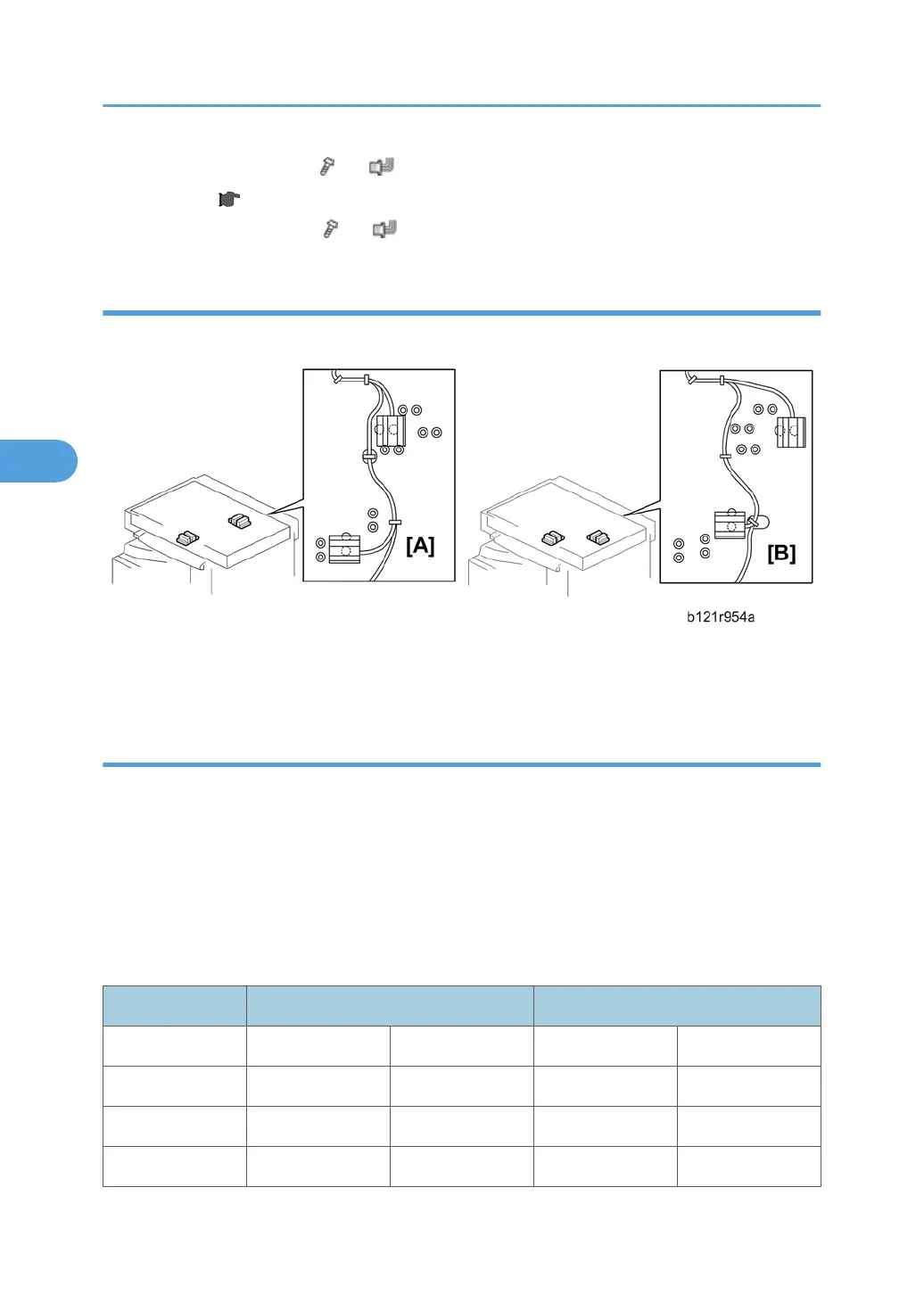

Sensor positions vary according to regions as shown below.
• [A]: Asia (including Taiwan; excluding China), Europe
• [B]: China (Sensor positions for China model (8K/16K))
Sensor Positions for China Model (8K/16K)
This procedure is for China models only. You must rearrange the positions of the original width and length
sensors for the copier to detect the following original sizes:
• 8K SEF (270 x 390 mm)
• 16K SEF (195 x 270 mm)
• 16K LEF (270 x 195 mm)
After you have rearranged the positions, the sensors work as listed in the table. Rearrange the sensor
positions as follows:
Original Size Length Sensors Width Sensors
8K-SEF L1 L2 W1 W2
16K-SEF X X X O
16K-LEF X O O O
16K-SEF O O X O
4. Replacement and Adjustment
