Installation: G3 Interface Unit Type 9001 (D418-06)
D418 20 SM

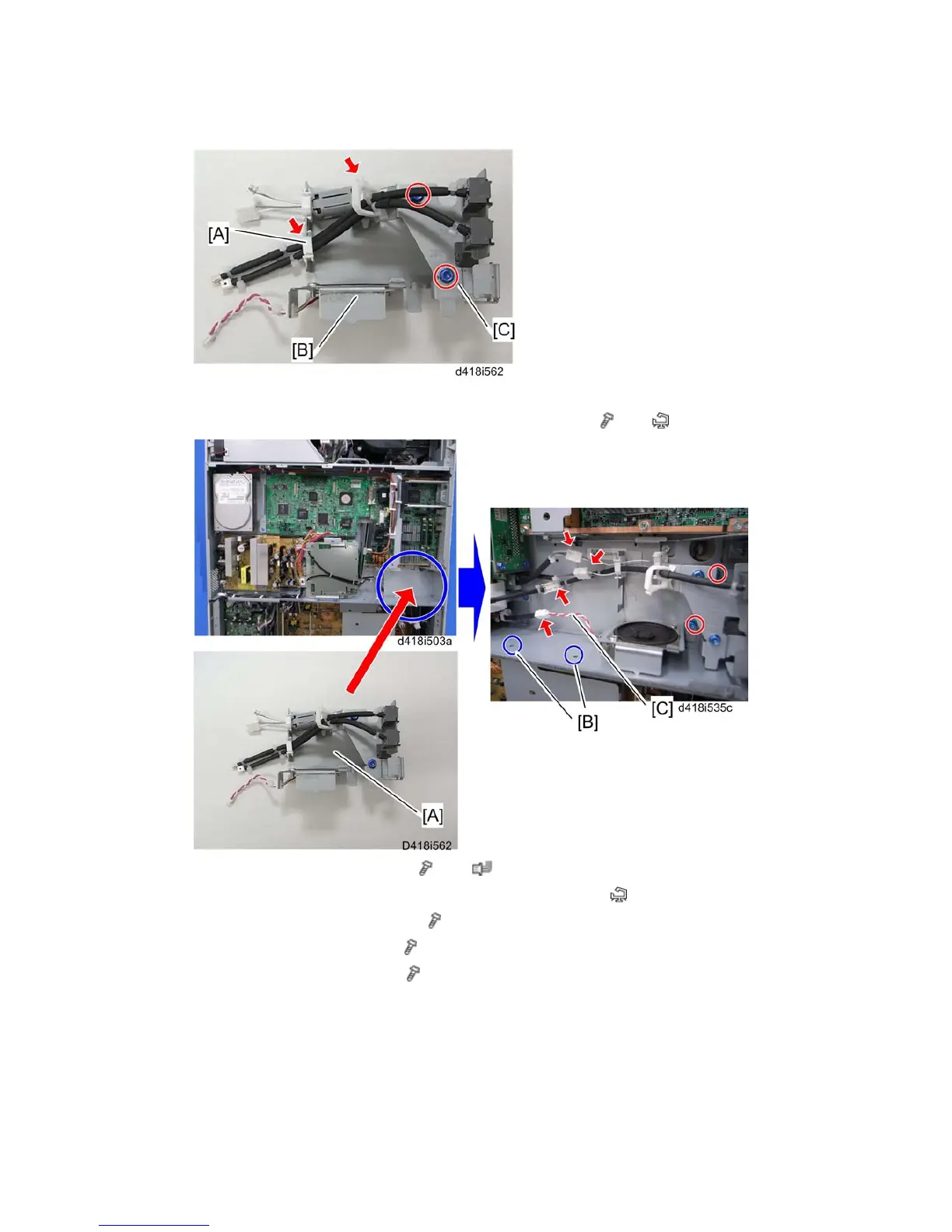

13. Attach the edge saddle clamp [A] to the speaker unit [B].
14. Attach the G3 connector bracket [C] to the speaker unit [B] (
x 2, x 2).
15. Install the speaker assembly [A] (
x 2, x 4).
16. Attach two clamps at [B] and fasten the speaker harness [C] (
x 2).
17. Reattach the controller box cover (
x 13).
18. Reattach the rear lower cover (
x 2).
19. Reattach the rear upper cover (
x 2).
