Drum Unit
SM 4-39 D062/D063/D065/D066
Replacement
and
Adjustment
2. Spring [C]
3. Timing belt [D]
4. Drum motor [E] (
x 1, x 5)

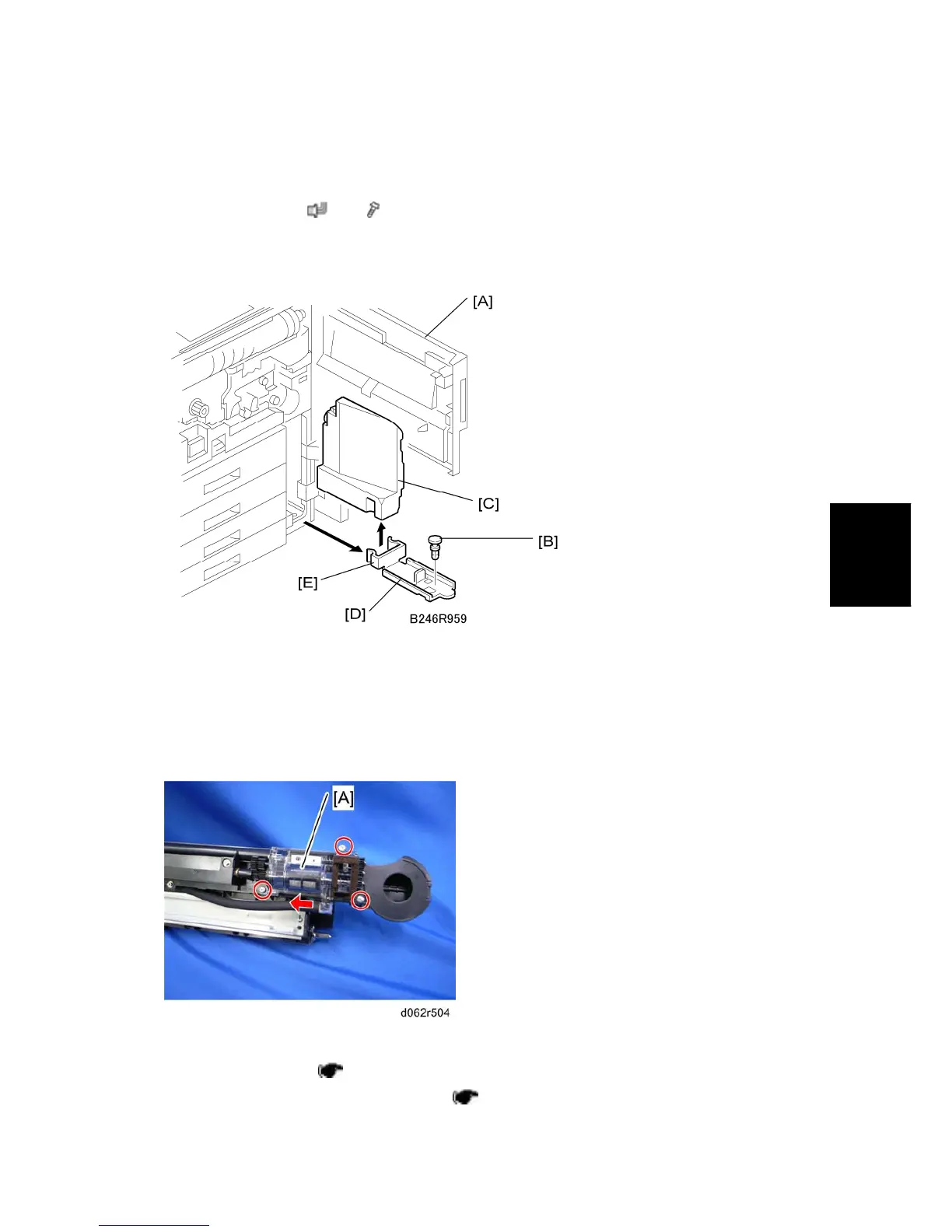

4.6.15 TONER COLLECTION BOTTLE
1. Open the front door [A].
2. Remove the lock pin [B], then pull out the toner collection bottle [C] and its base [D].
3. Detach the bottle from the base clamp [E] and replace it.
4.6.16 TONER SEPARATION UNIT
Remove:
Development unit(
p.4-43 "Removal ")
Pressure release tube, only for D066 (
p.4-43 "Developer Replacement")
