Paper Feed
D062/D063/D065/D066 4-92 SM

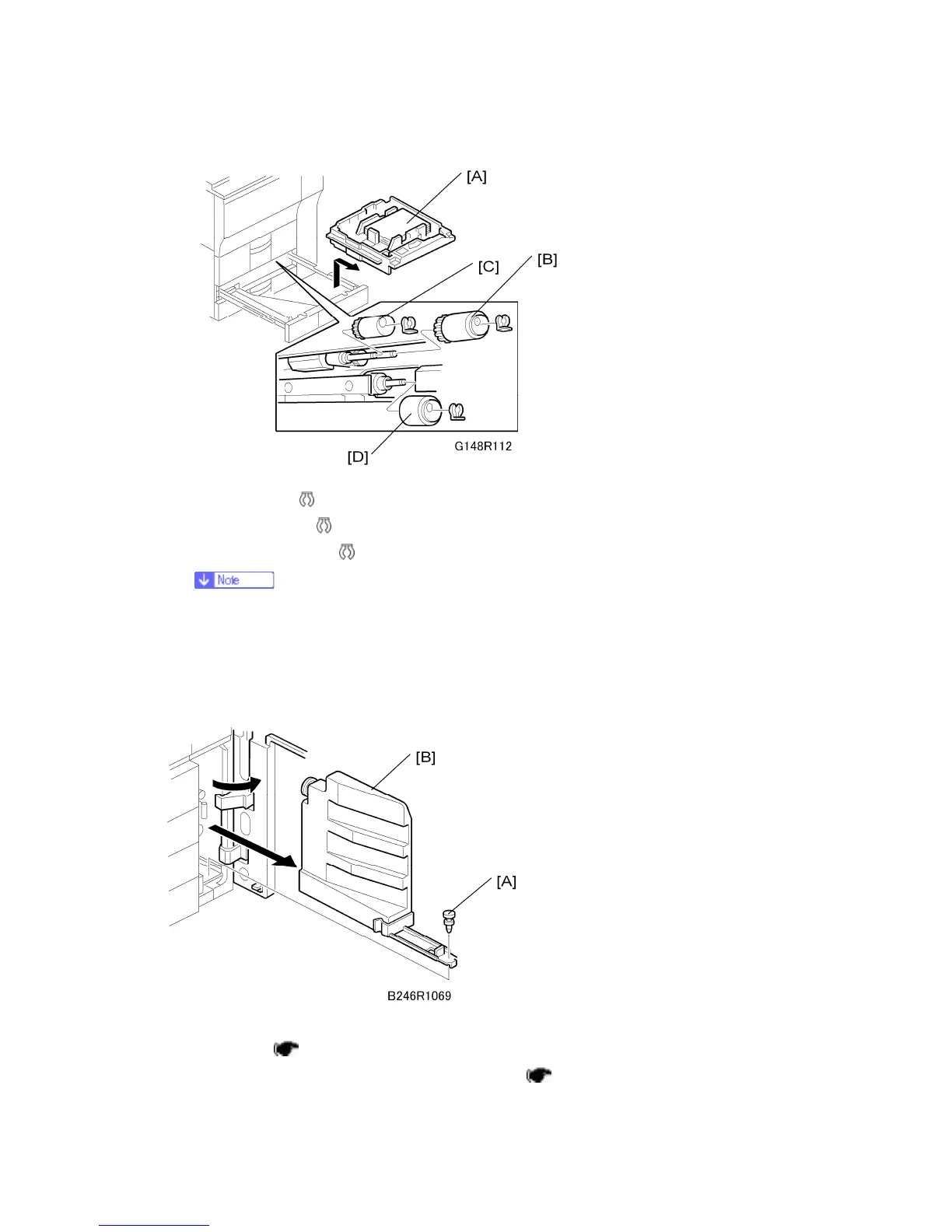

2. Feed roller [B] (
x 1)
3. Pick-up roller [C] (
x 1)
4. Separation roller [D] (
x 1)
The operation of the FRR mechanisms for the tandem tray (Tray 1) and
universal trays (Tray 2, Tray 3), are similar. These rollers are interchangeable.
Do not touch the surface of new rollers during replacement.
4.11.9 FEED UNIT
Remove:
Front door (
p.4-6)
LCT entrance guide cover and right lower cover (
p.4-97 "Relay Sensor")
