Covers
SM 1
D373/D3
74
Finisher
D373/D37
4
1.
REPLACEMENT AND ADJUSTMENT

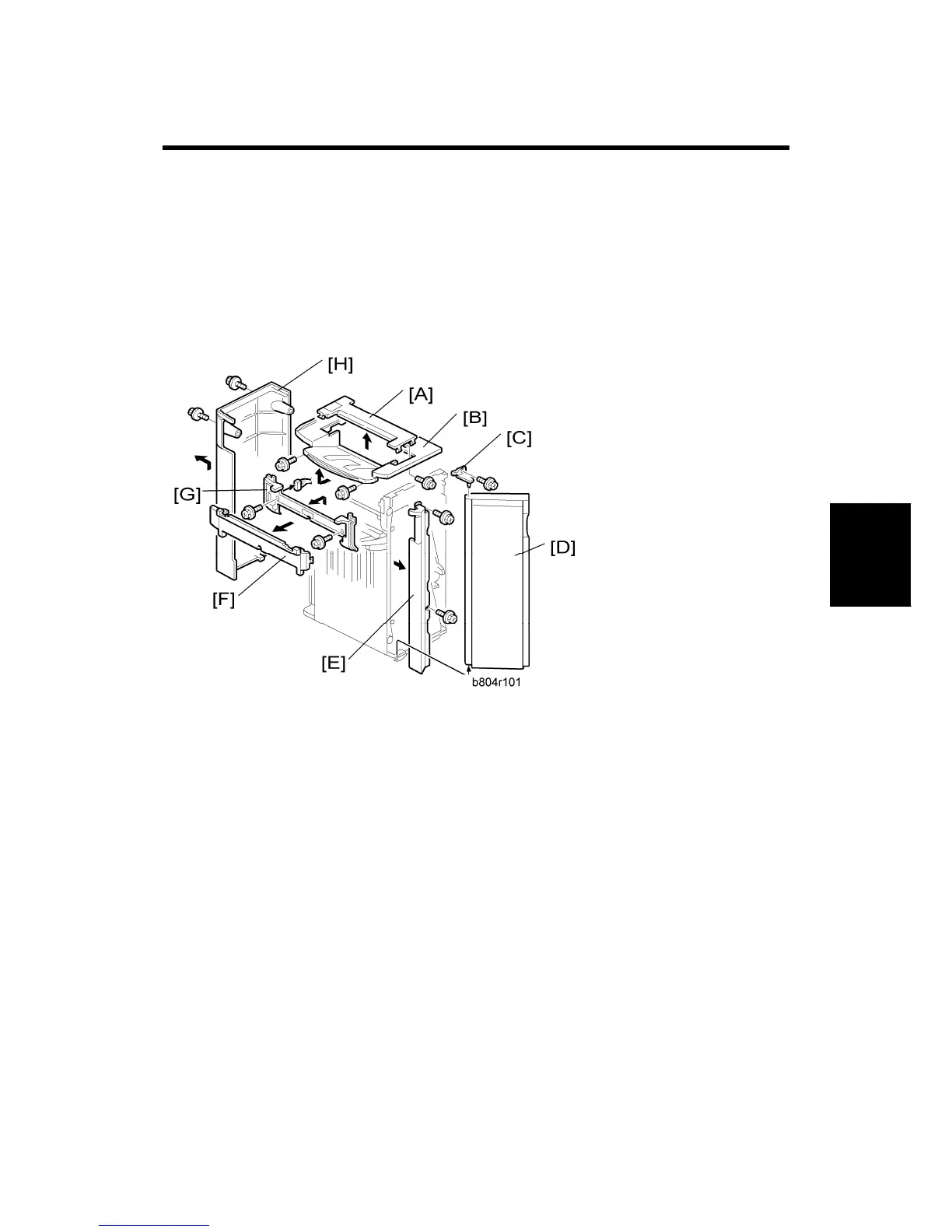

1.1 COVERS
1.1.1 EXTERIOR
COVERS
1.
Open the front door [D].
2.
Small upper cover [A] (
x1)
3.
Upper cover [B] (
x2)
4.
Front door bracket [C] (
x1)
5.
Front door [D]
6.
Front left side cov
er [E] (
x2)
7. Cover
[F]
8.
Paper exit cover [G] (
x2)
9.
Rear cover [H] (
x2)
931
