Operation Panel and External Covers
D062/D063/D065/D066 4-8 SM
4.3.4 LEFT COVERS

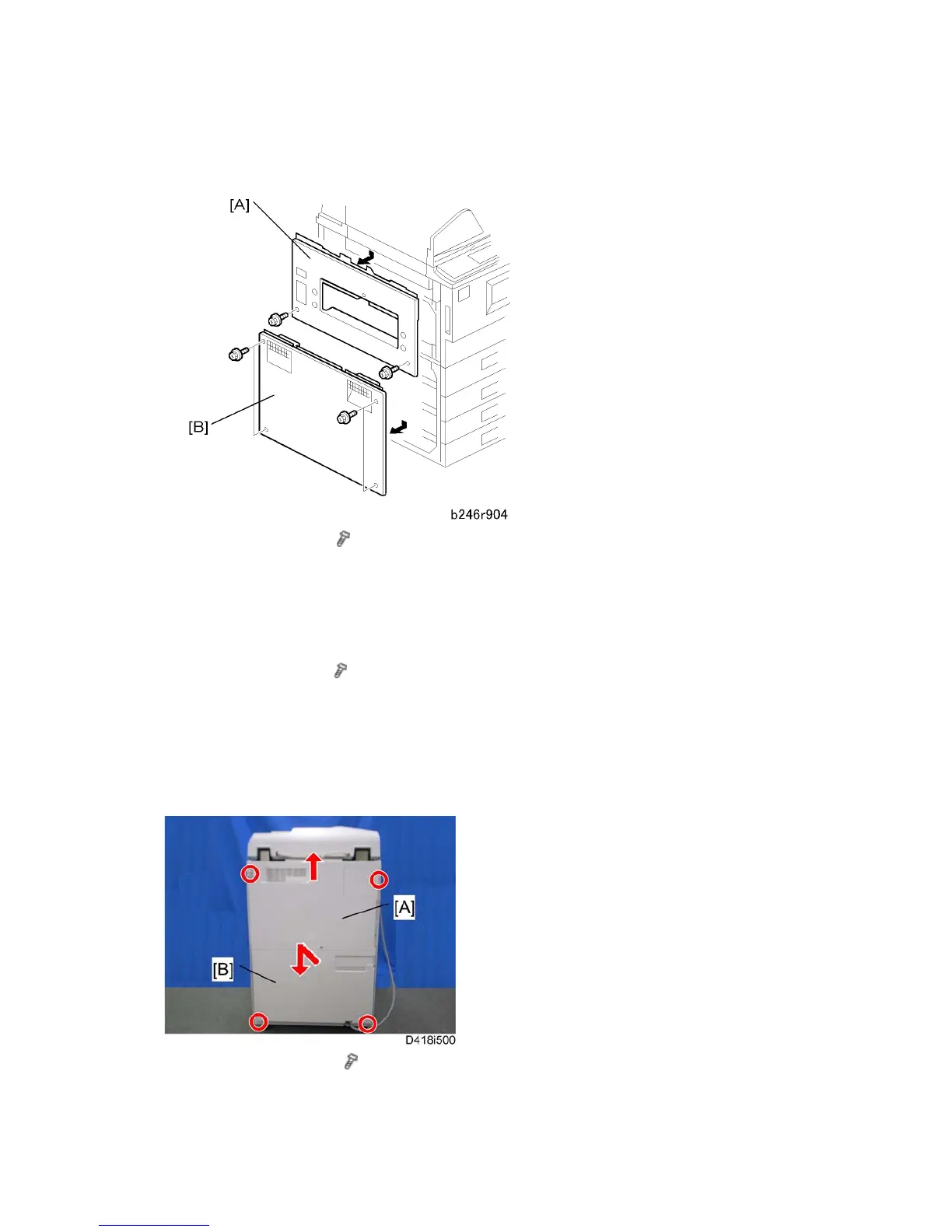

1. Left upper cover [A] (
x 2)
Slide down to remove.
When re-attaching, before tightening the screws make sure that 1) the tabs on the
cover are engaged with the grooves on the machine, and 2) the catches on the
cover are engaged with the shoulder screws.
2. Left lower cover [B] (
x 2)
Slide down to remove.
When re-attaching, before tightening the screws make sure that the tabs on the
cover are engaged with the grooves on the machine.
4.3.5 REAR COVERS
1. Rear upper cover [A] (
x 2)
Slide down to remove.
