REPLACEMENT AND ADJUSTMENT
SM 13 B513/B531
Output
Jogger Unit/
Punch Unit
B513/B53131

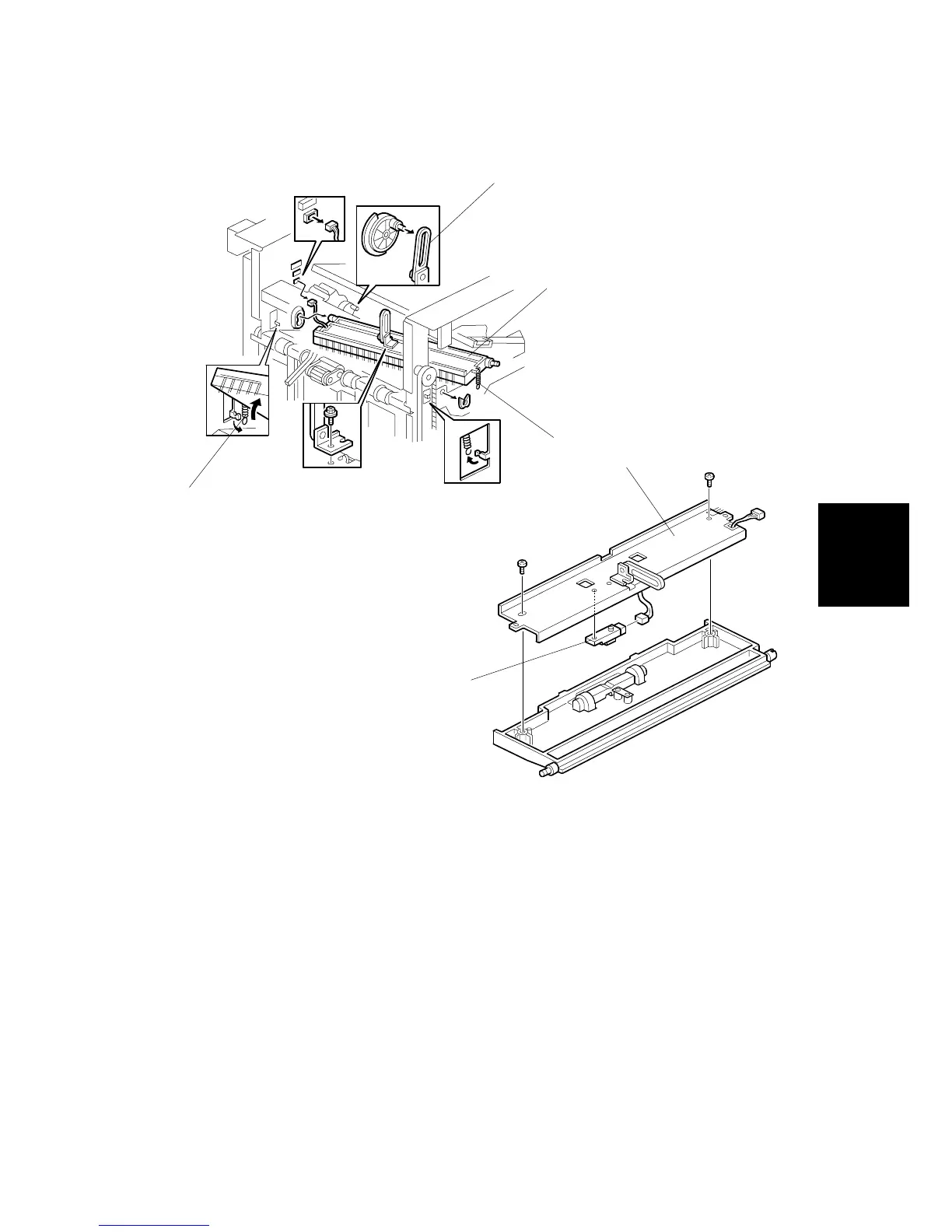

3.5.3 SHIFT TRAY EXIT SENSOR
1. Remove the top cover.
2. Open the front door.
3. Remove the inner cover.
4. Release the upper exit guide springs [A] (x 2).
5. Disconnect the link [B] from the cam ( x 1).
6. Remove the upper exit guide [C] ( x 1, x 1).
7. Remove the guide stay [D] ( x 2).
8. Replace the shift tray exit sensor [E] ( x 1, x 1).
B478R512.WMF
B478R511.WMF
[D]
[A]
[C]
[A]
[E]
[B]
To Next Page
