Component Layout
D373/D374 28 SM

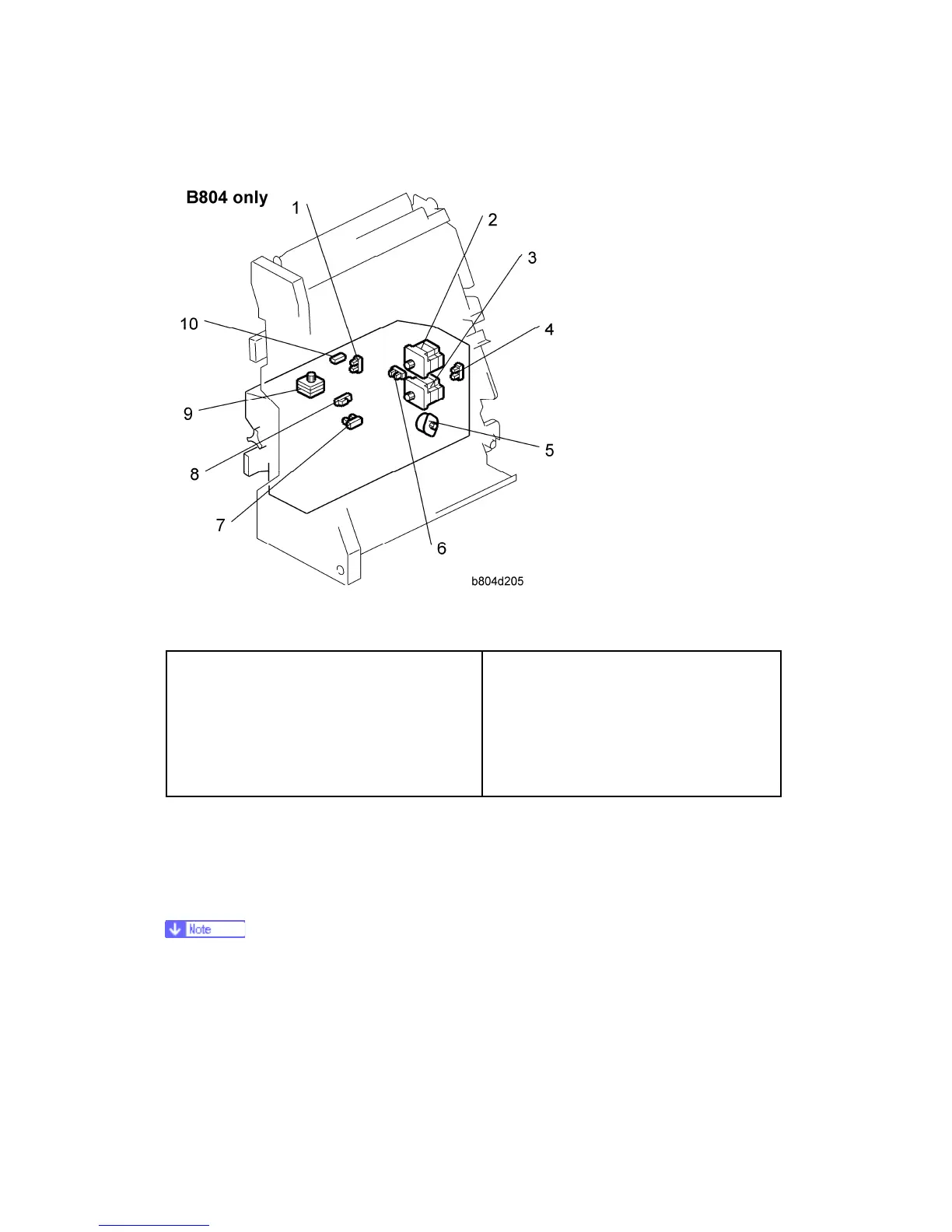

B804 Fold unit
1. Clamp Roller HP Sensor (S25)
2. Fold Roller Motor (M12)
3. Fold Plate Motor (M11)
4. Fold Plate HP Sensor (S29)
5. Fold Unit Bottom Fence Lift Motor (M16)
6. Fold Cam HP Sensor (S30)
7. Fold Bottom Fence HP Sensor (S28)
8. Fold Unit Entrance Sensor (S26)
9. Clamp Roller Retraction Motor (M8)
10. Fold Unit Exit Sensor (S31)
2.1.3 SUMMARY OF ELECTRICAL COMPONENTS
Here is a general summary of all the electrical components of the B804/B805 finishers.
In the table below a number that appears in bold text (M8, etc.) denotes a
component that is on the 2000/3000 Sheet Finisher B804 only.
