Scanner
SM 4-17 D062/D063/D065/D066
Replacement
and
Adjustment

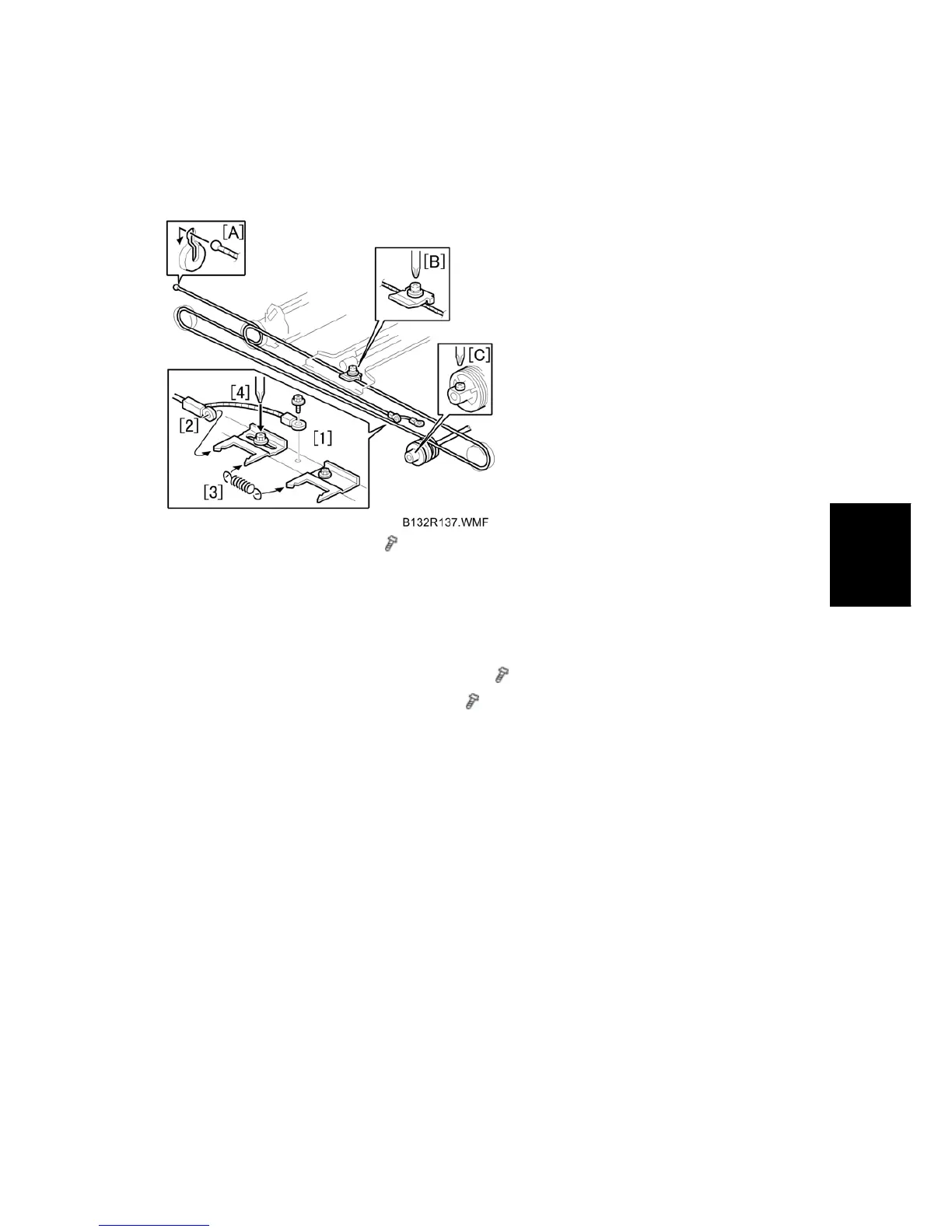

4.4.9 SCANNER WIRE REPLACEMENT
Scanner Wire Removal
1. Disconnect ground wire [1] (
x1)
2. Disconnect the head of the wire [2] from tension bracket 1.
3. Remove spring [3].
4. Loosen the screw [4] of tension bracket 1.
5. Disconnect the end of the wire at [A].
6. Remove lock bracket [B] of the 1st scanner (
x1).
7. Disconnect the wire from the pulley [C] (
x1).
8. Remove the wire from the scanner.
To Next Page
