DETAILS
B513/B531 36 SM
6.6 FEED-OUT

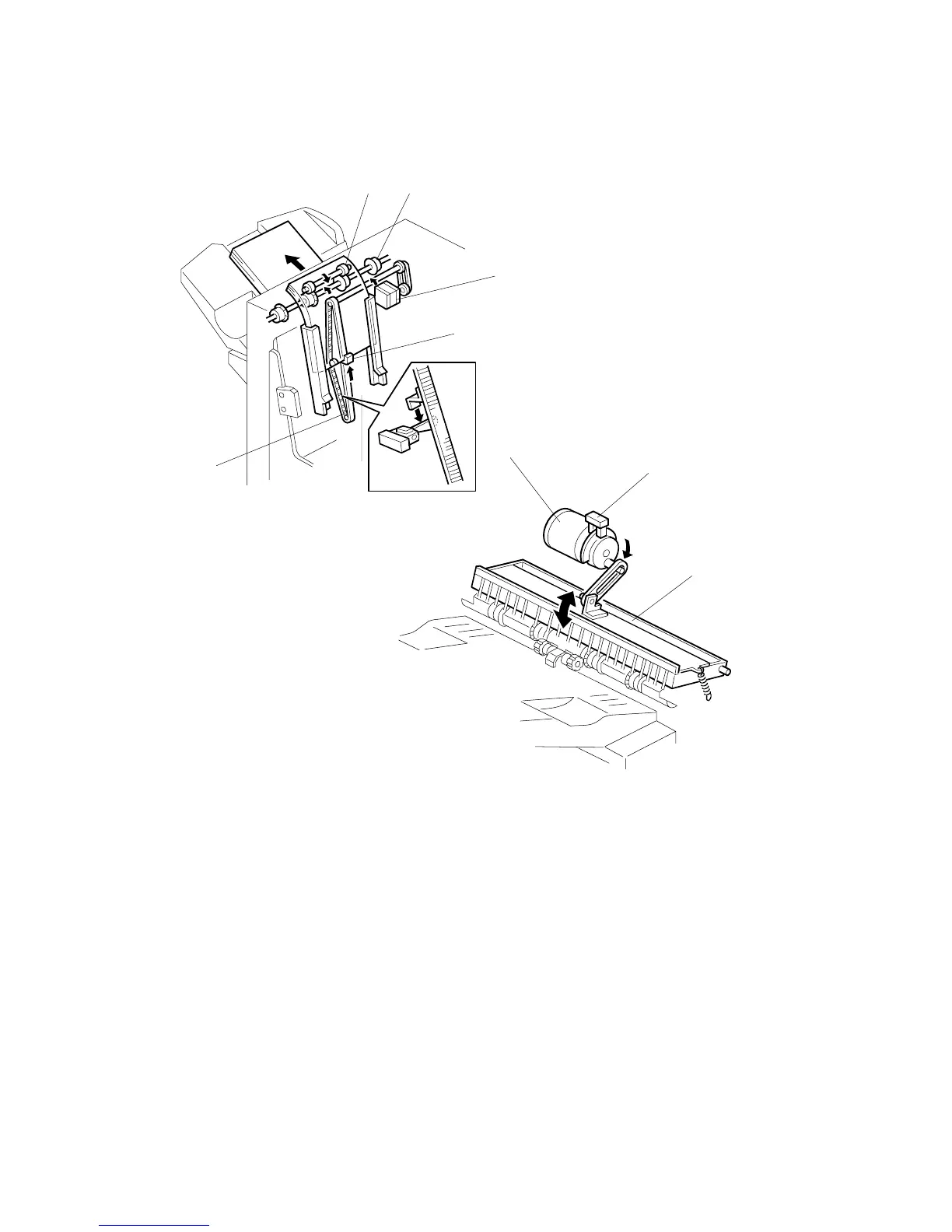

After the copies have been stapled, the stack feed-out motor [A] starts. The pawl
[B] on the stack feed-out belt [C] transports the set of stapled copies up and feeds
it to the shift tray exit roller [D]. When stapling starts, the exit guide motor [E] opens
the upper exit guide [F], which includes the upper shift tray exit roller [G], in order to
feed out the leading edge of the copy set smoothly. The exit guide motor turns on
again a certain time after stapling is complete, and the upper exit guide plate is
lowered. Then the shift tray exit roller takes over the stack feed-out.
The on-off timing of the exit guide motor is detected by the exit guide open sensor
[H].
The stack-feed-out motor turns off when the pawl actuates the stack feed-out belt
home position sensor [I].
B478D512.WMF
B478D519.WMF
[B]
[C]
[D][G]
[I]
[A]
[F]
[H]
[E]
