Paper Feed
SM 4-87 D062/D063/D065/D066
Replacement
and
Adjustment

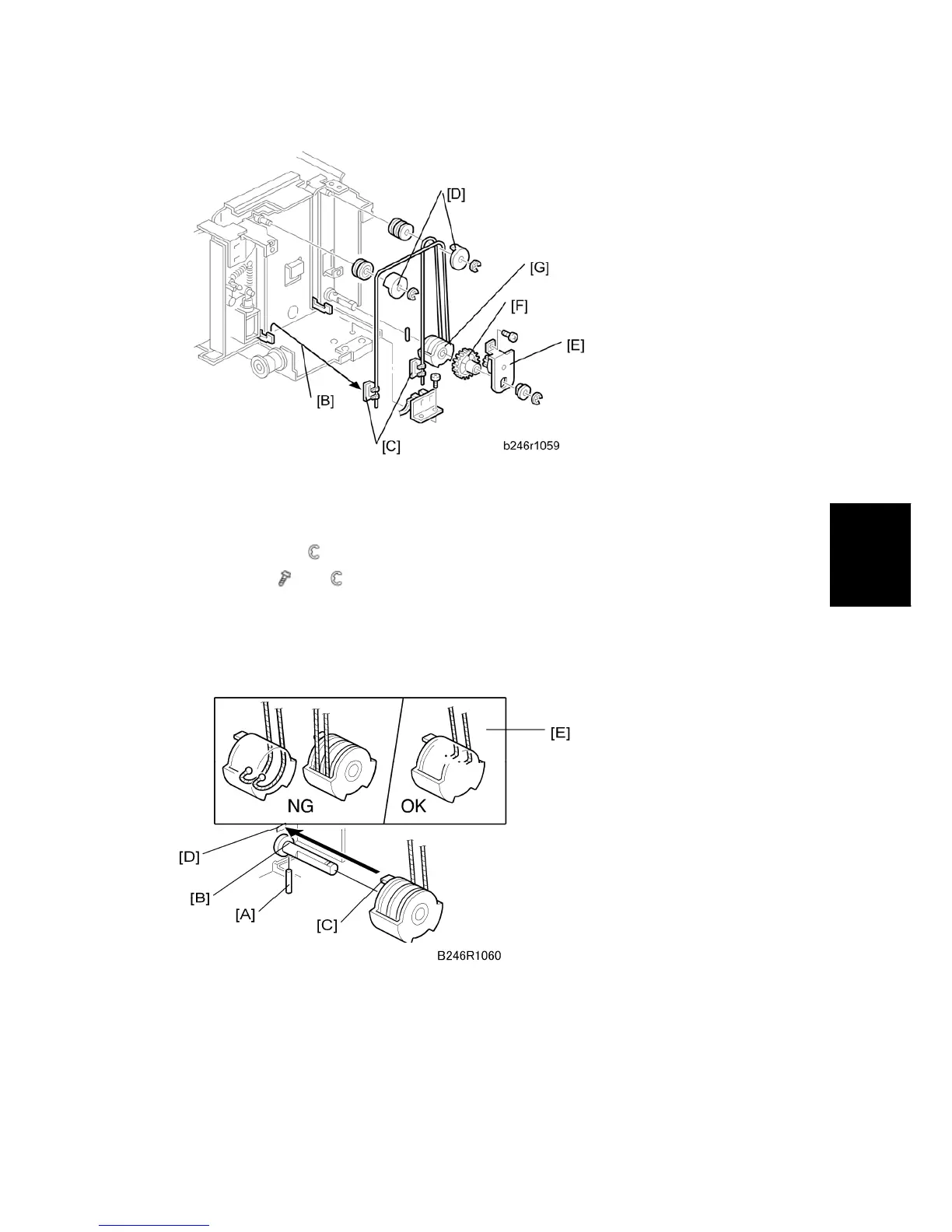

2. Remove the left stay [B].
3. Wire stoppers [C]
Slightly lift the front bottom plate and unhook.
4. Wire covers [D] (
x 1 each)
5. Bracket [E] (
x 1, x 1, bushing x 1)
6. Gear [F]
7. Bottom plate lift wire [G]
Reinstallation
Set the positioning pin [A] in the hole [B], and set the projection [C] in the hole [D].
Position the wire as shown [E].
Do not cross the wires.
To Next Page
