Paper Feed
D062/D063/D065/D066 4-84
SM

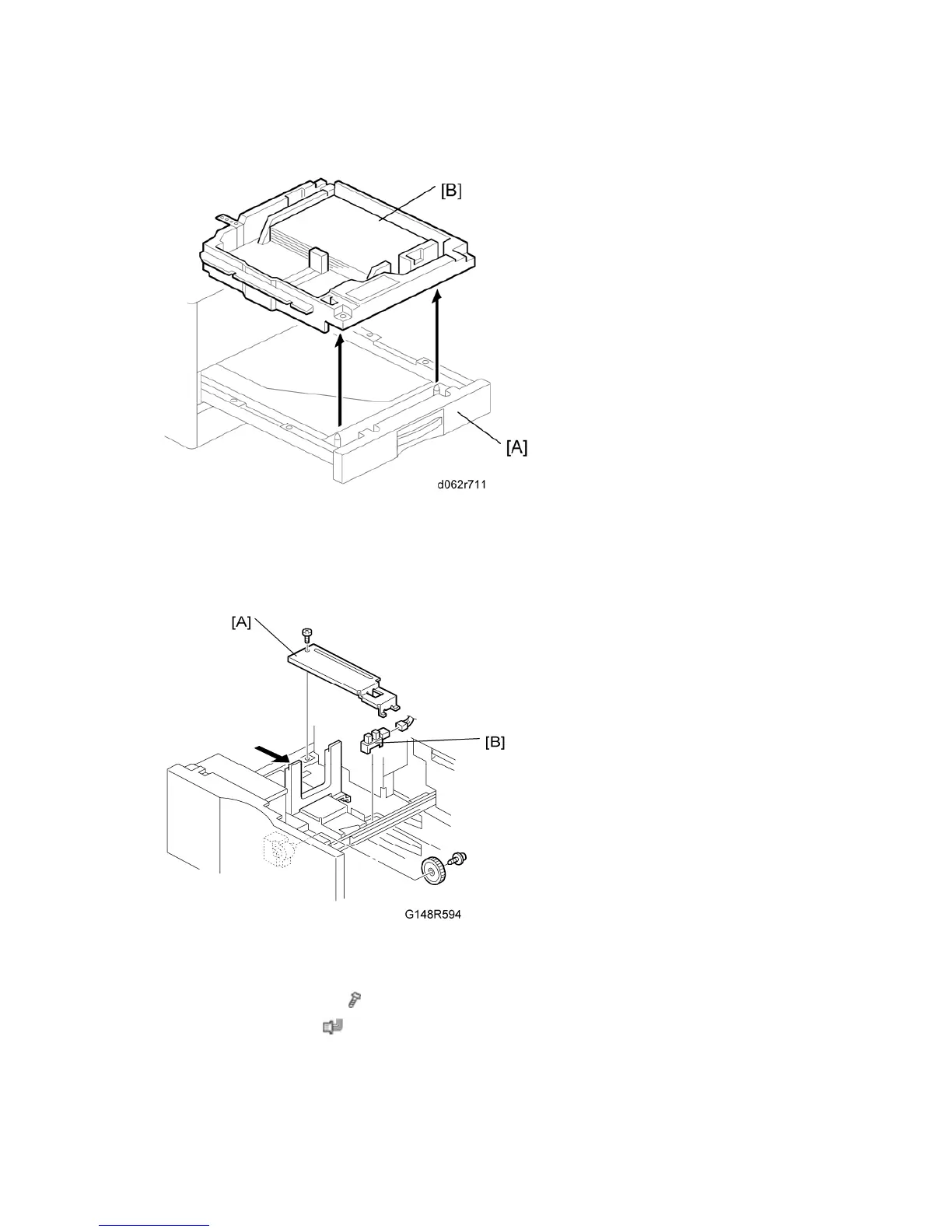

Universal Tray
1.
Pull tray 2 or tray 3 [A].
2.
Lift the tray [B] out of the drawer
.
4.11.2 REAR
FENCE
RETURN
SENSOR REPLACEMENT
1.
T
urn off the machine.
2.
Pull out the tandem feed tray
.
3.
Rear bottom plate [A] (
x
1)
4.
Return sensor [B] (
x
1).
270
272
