Electrical Component
s: 1st Stopper
SM 25
D454
Multi-Folding
Unit FD5000
D454
1.3.13
1ST STOPPER HP SENSOR
1.
1st stopper unit (
p.19)
2.
1st stopper HP sensor bracket [A] (
x
1)
3.

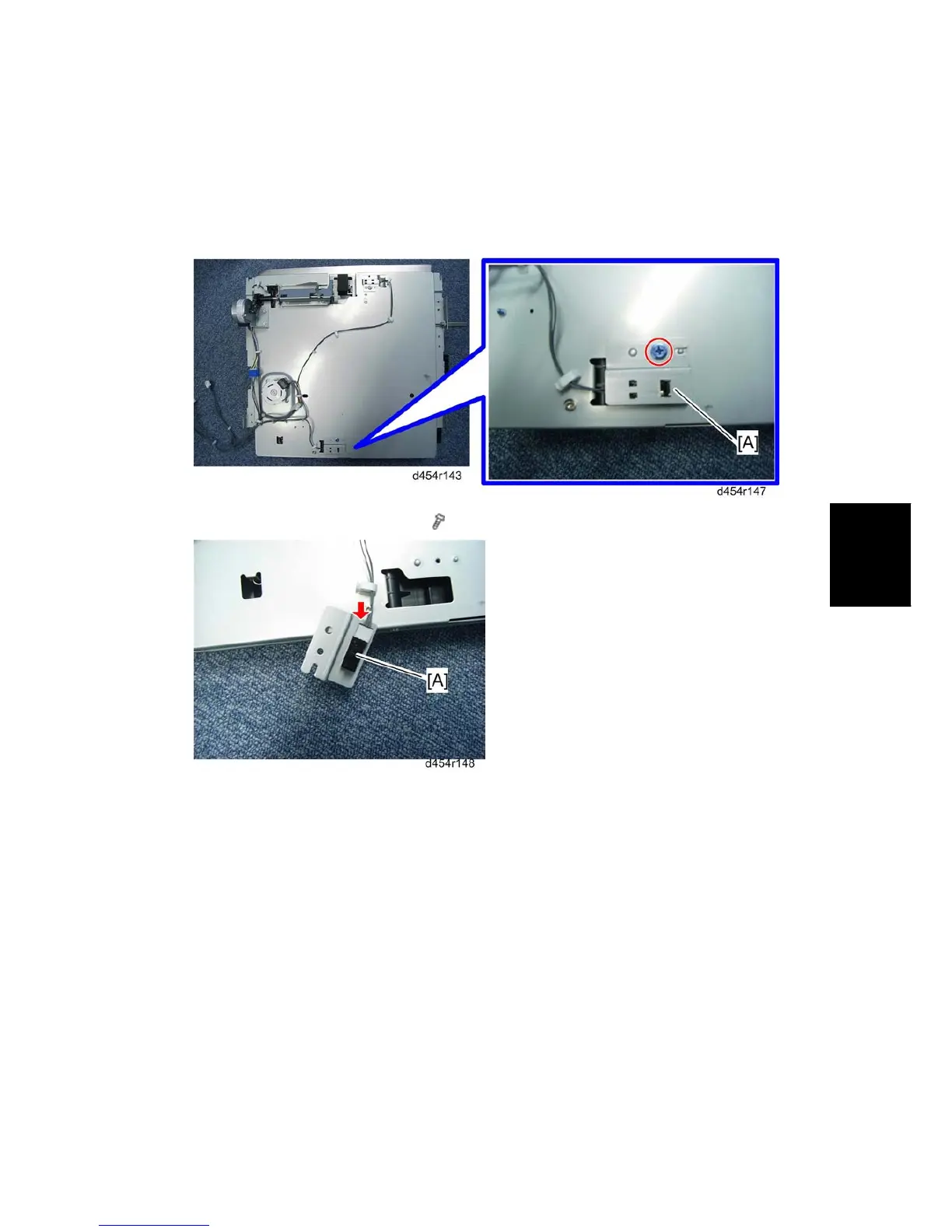

1st stopper HP sensor [A] (hooks)
1.3.14 REGISTRATION
SENSOR
1.
Pull out the folding unit drawer (
Pull Out the Folding Unit Drawer)
1243
1245
