Ricoh Aficio MP 8001 SP User Manual

Electrical Components: 2nd Stopper
SM 27 D454
Multi-Folding
Unit FD5000
D454
1.4 ELECTRICAL COMPONENTS: 2ND STOPPER
1.4.1 2ND STOPPER UNIT
1. 1st stopper unit ( p.19)
2. Jam removal door ( p.25 "Registration Sensor")

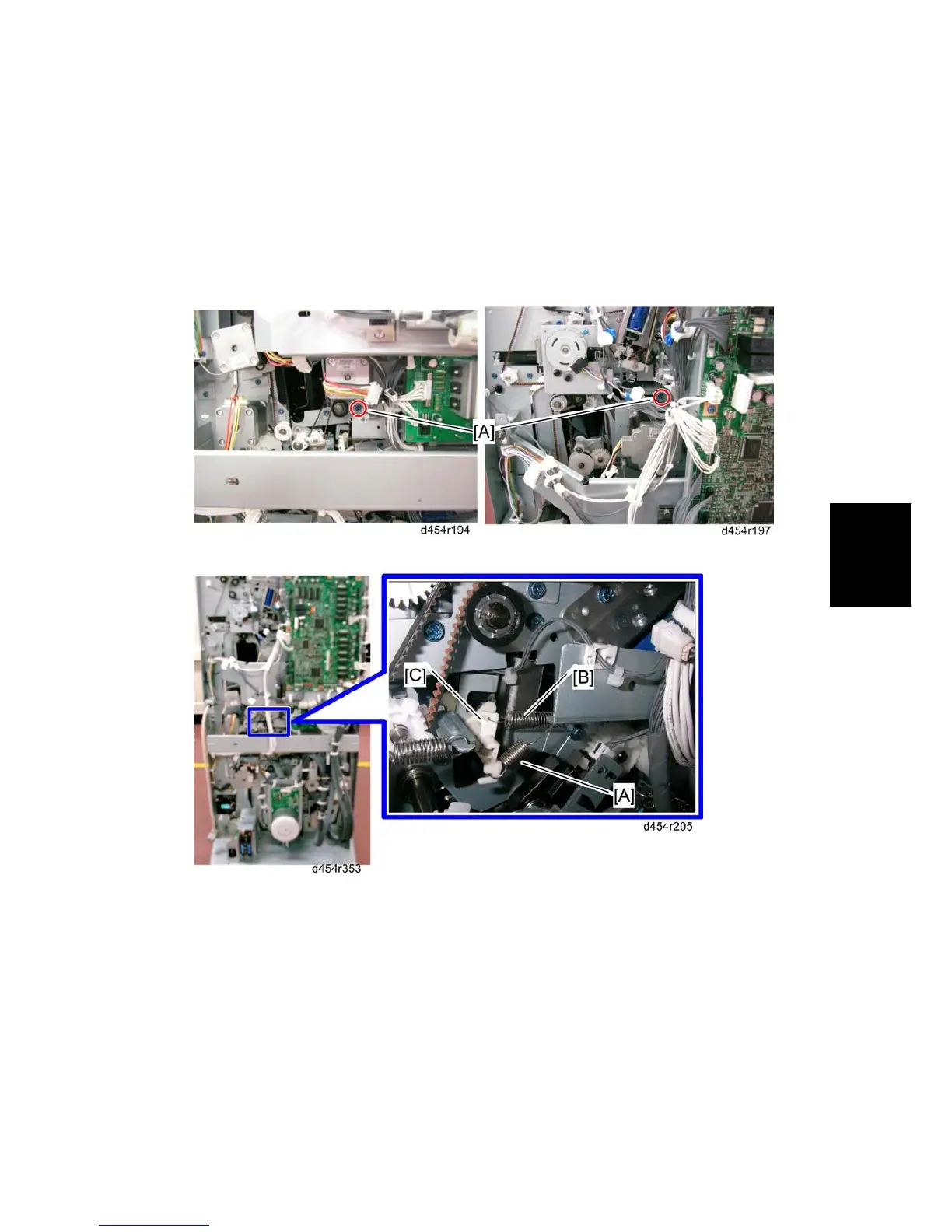

3. Remove two screws [A] at the rear side of the folding unit drawer.
4. Remove the spring [A] for the solenoid spring [B] for the guide plate.
5. Remove the arm [C] for the guide plate.
