Cover Interposer Tray (B704)
SM 2-77 D062/D063/D065/D066
Installation

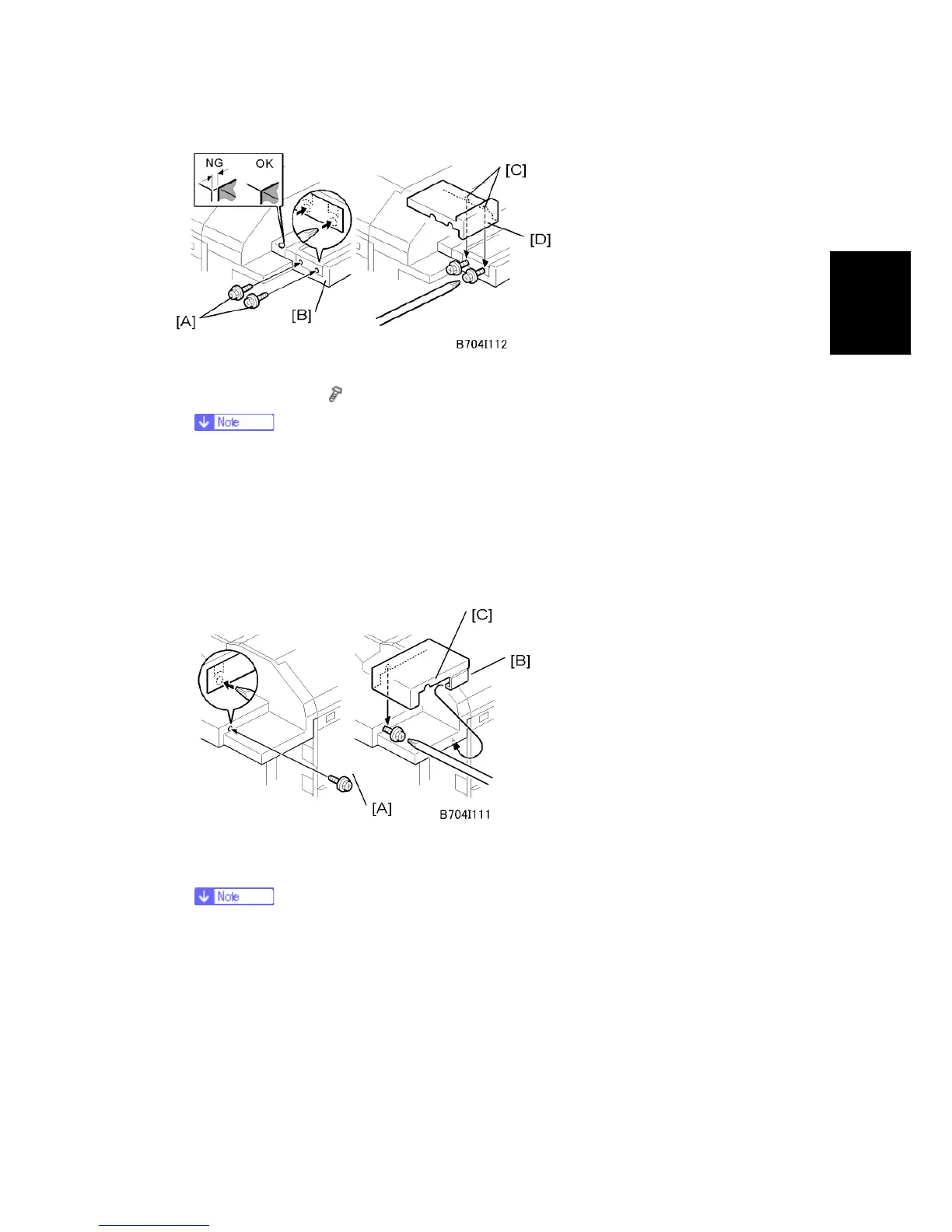

1. Temporarily attach the screws [A] (with about two turns) to the right end of the finisher
extension table [B] (
x 2, tapping M4 x 8)
The holes are not visible because they are covered with tape. Just punch the
screws through the holes.
2. Align the cutouts [C] of the right rear corner plate [D] with the screws and attach the
plate.
3. With a long screw driver inserted through the cutouts in the right rear corner plate [D],
tighten the screws to fasten the right rear corner plate to the table extension [B].
4. Temporarily attach the screw [A] (M4 x 8) with about two turns to fasten to the panel at
the right front corner.
The hole is not visible because it is covered with tape. Just punch the screw
through the hole.
5. With the clamp [B] under the edge of the corner, align the cutout [C] in the right front
corner plate with the screw, then snap it into position.
6. With a long screwdriver inserted into the plate cutout [C], tighten the screw to fasten
the right front corner plate.
