Replacement and
Adjustment
D454 34
SM
1.5.3

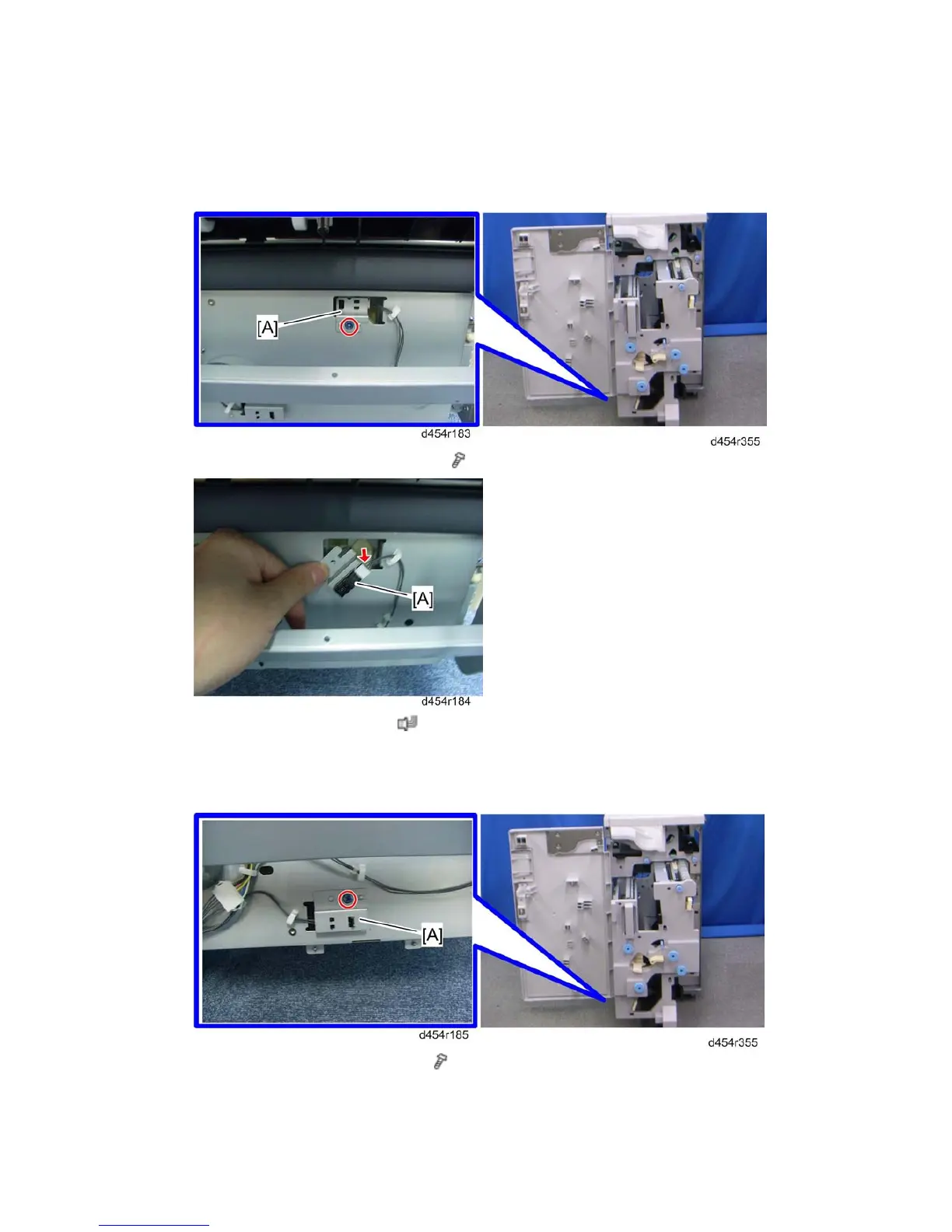

3RD STOPPER PAPER SENSOR
1.
Pull out the folding unit drawer
.
2.
3rd stopper paper sensor bracket [A] (
x
1)
3.
3rd stopper paper sensor [A] (
x
1)
1.5.4
3RD STOPPER HP SENSOR
1.
Pull out the folding unit drawer
.
2.
3rd stopper HP sensor bracket [A] (
x
1)
