Electrical Component
s: 3rd Stopper
SM 39
D454
Multi-Folding
Unit FD5000
D454
2.
Entrance sensor [A] (hooks,
x
1)
1.5.11

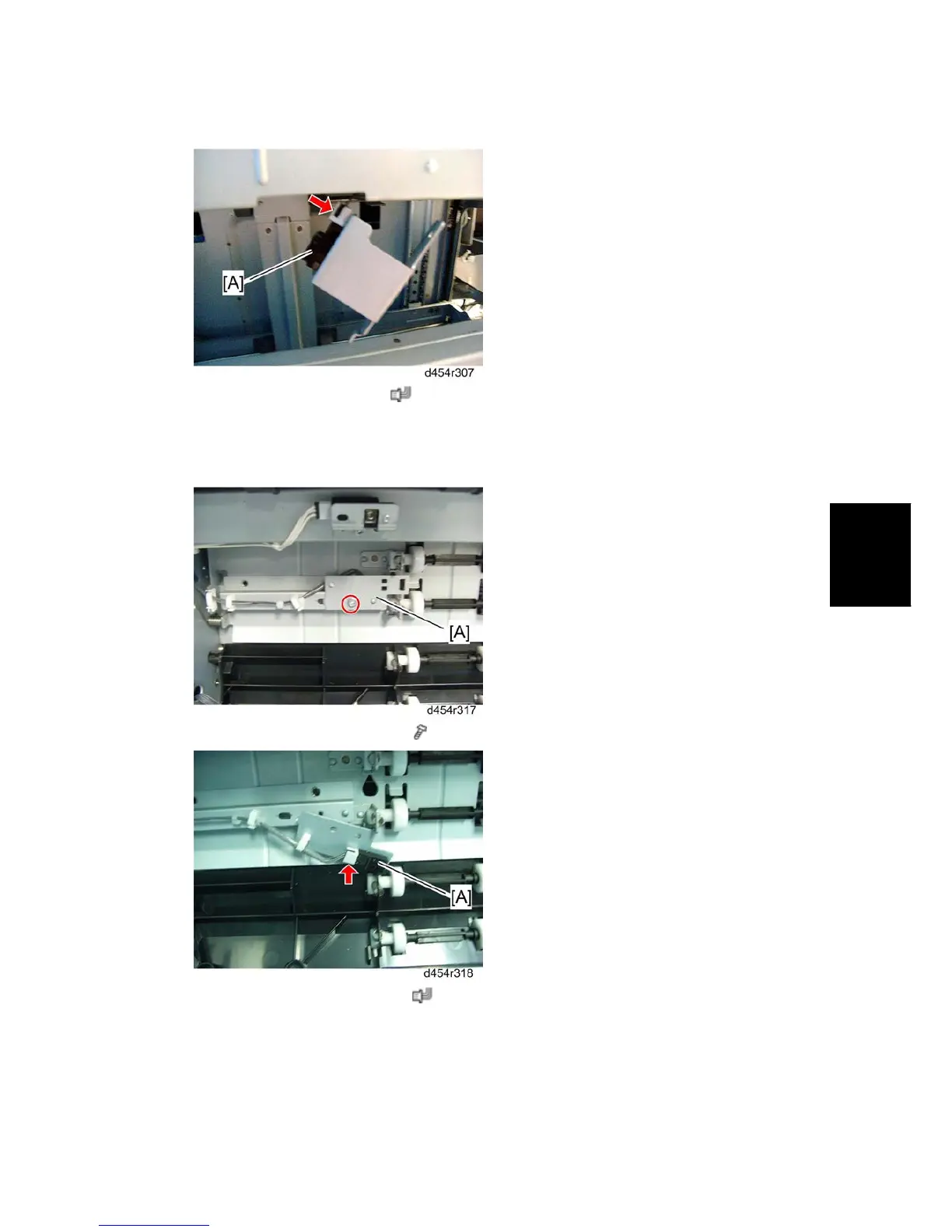

TOP TRAY EXI
T SENSOR
1.
T
op tray right
cover (
p.5)
2.
T
op tray exit sensor bracket [A] (
x
1)
3.
T
op tray exit sensor [A] (hooks,
x
1)
1257
1259
