Details
D454 92 SM

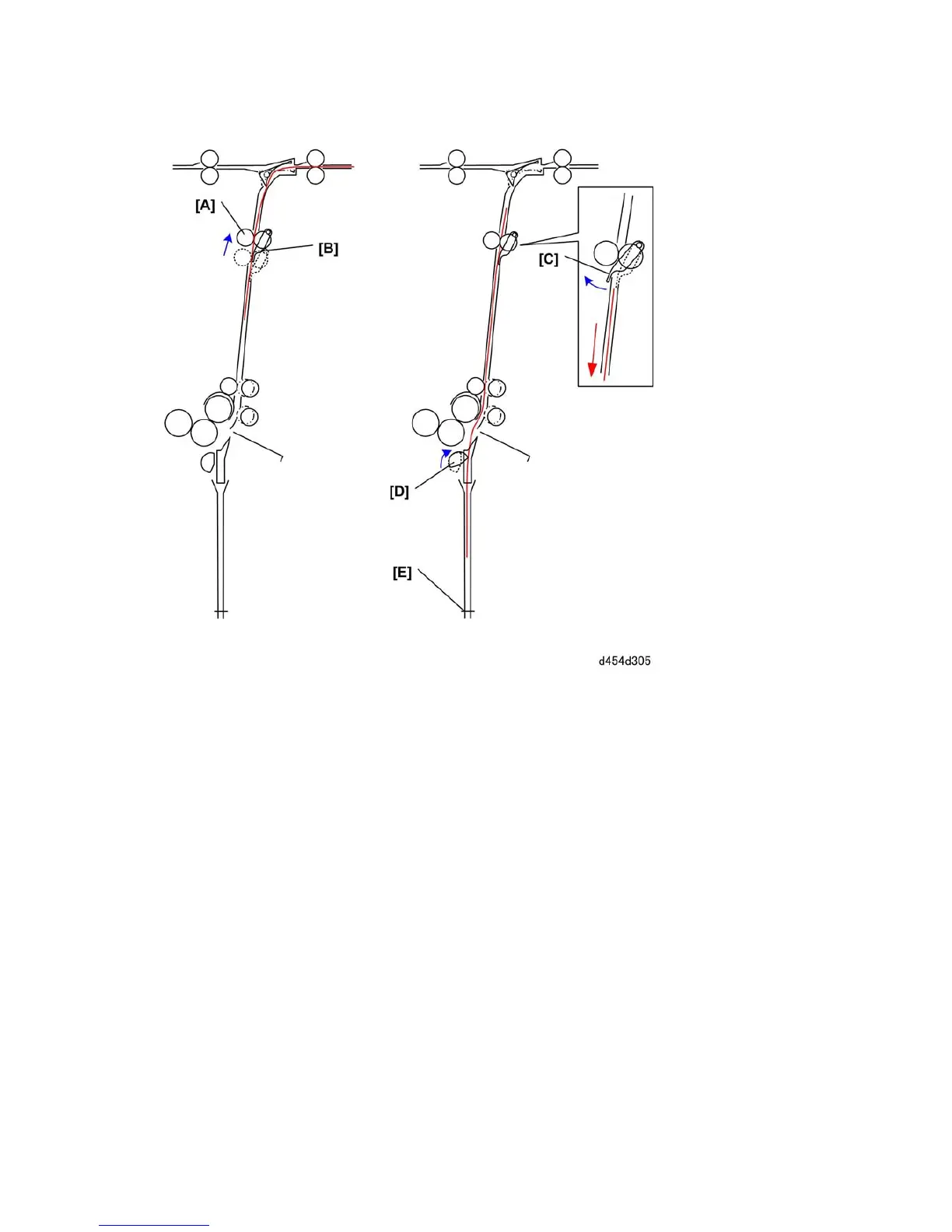

The dynamic roller [A] raises after the leading edge of the paper passes the TE stop pawl [B].
The TE stop pawl returns to its home position [C] after the trailing edge of the sheet passes.
After the trailing edge of the paper passes the dynamic roller, the positioning roller [D] starts
to rotate and feeds the paper as far as stopper 1 [E].
