Main Machine
SM 2-9
D062/D063/D065/D066
Inst
allation
6.

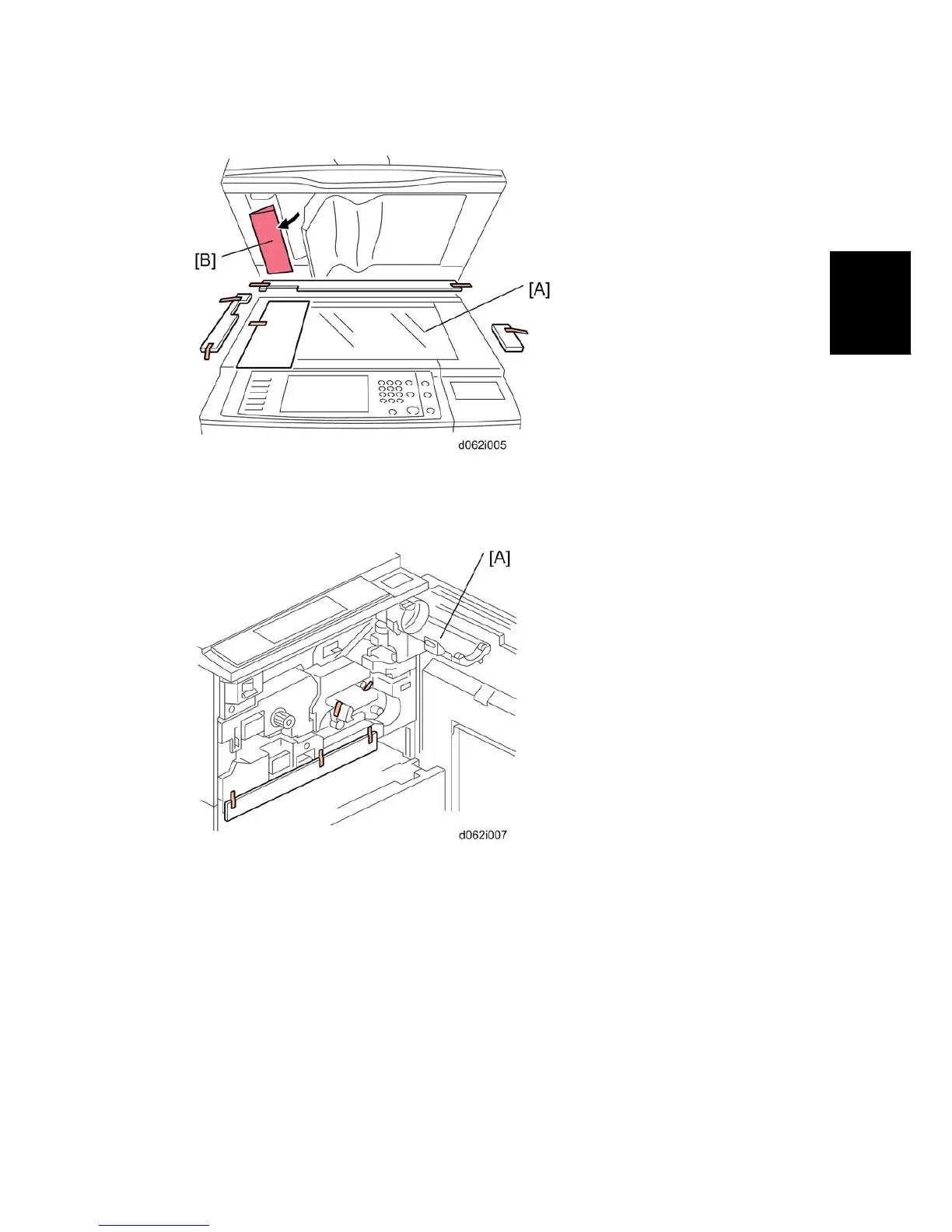

Raise the
ADF and remove all the tape
and shipping retainers around the exposure
glass [A] and operation panel.
7.
Remove the shipping retaini
ng sheet [B] under the white pad.
8.
Open the fro
nt door
, open the toner bottle hol
der [A], then remove all tape and shipping
retainers.
56
