3000-Sheet Finisher (D460)
D062/D063/D065/D066 2-44
SM
2.

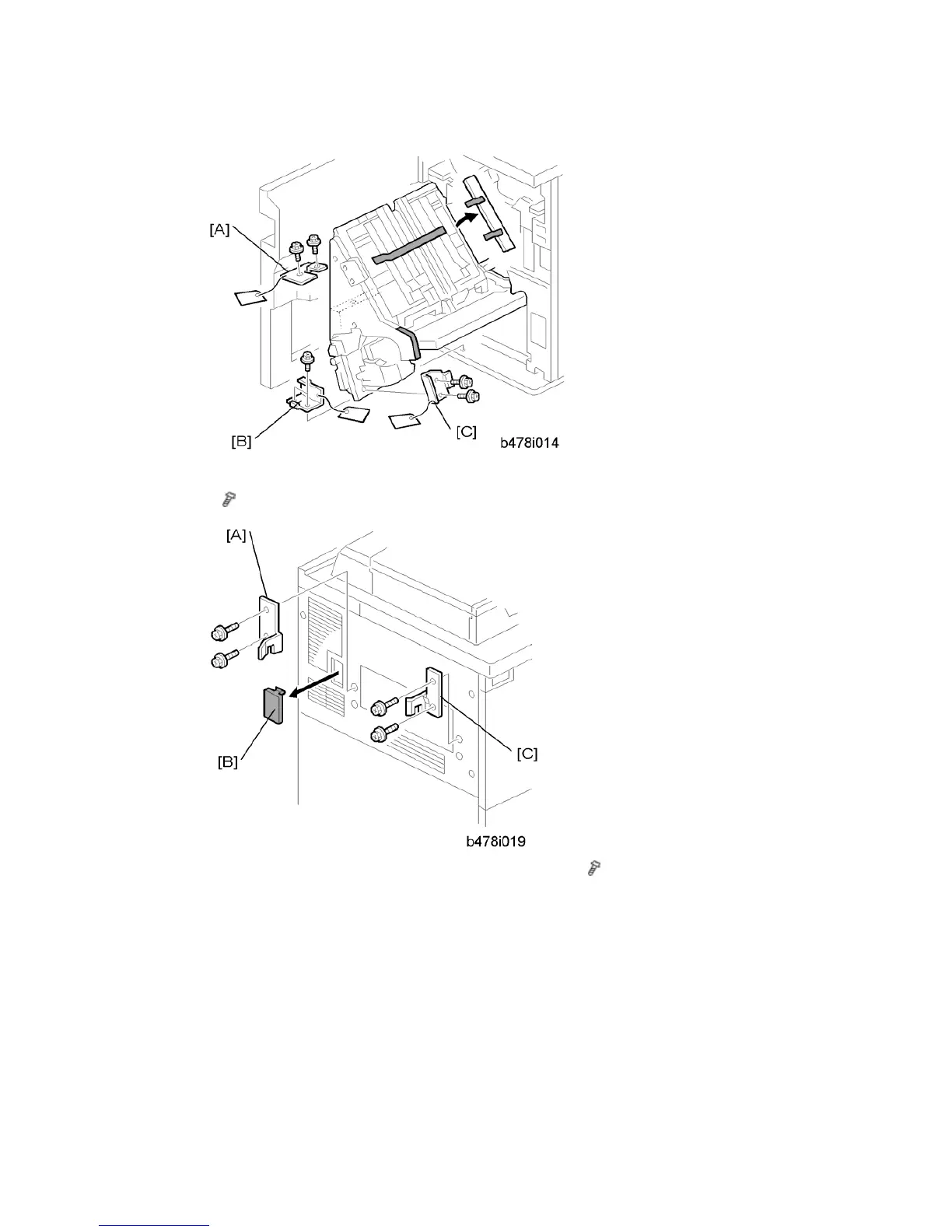

Open the front door and remove the shipping
retainers. Remove brackets [A], [B], and
[C] (
x 2 each).
3.
Install the front rear bracket [A] and front joint bracket [B] (
x 2 each) (M4 x 14) on
the left side of the copier
.
4.
Remove the connector cover [C].
91
