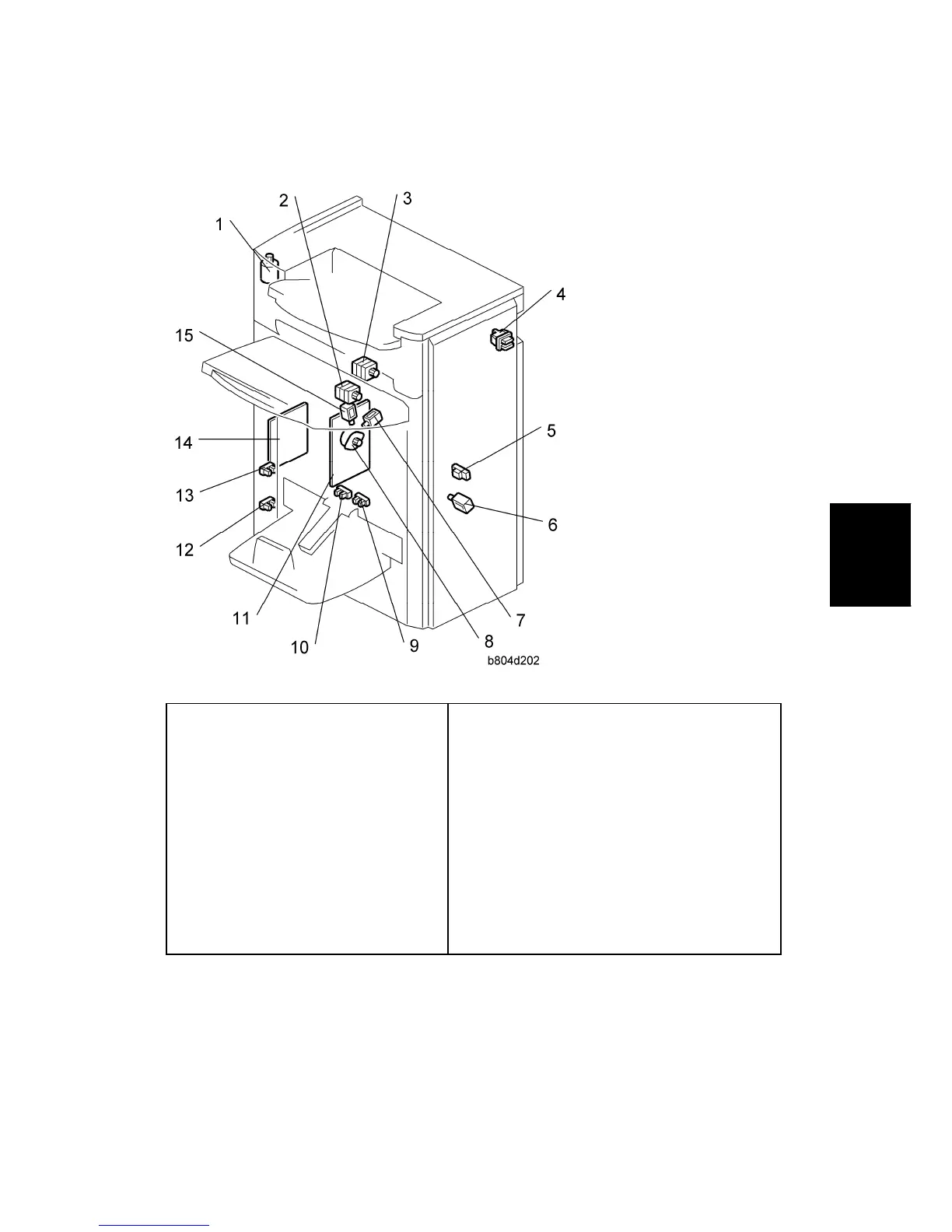

Component Layout
SM 25 D373/D374
Finisher
D373/D374
Lower Area B804/B805
1. Upper Tray Lift Motor (M21)
2. Lower Transport Motor (M3)
3. Entrance Motor (M1)
4. Front Door Safety Switch (SW1)
5. Pre-Stack Tray Exit Sensor (S2)
6. Stapling Edge Pressure Plate
Solenoid (SOL4)
7. Positioning Roller Solenoid (SOL3)
8. Positioning Roller Motor (M14)
9. Lower Tray Full Sensor – Front (S34)*
1
10. Lower Tray Full Sensor – Rear (S33)*
1
11. Main Board (PCB1)
12. Upper Tray Full Sensor – (S20) *
2
13. Upper Tray Full Sensor – (S19)
14. Booklet Stapler Board (PCB2)*
1
15. Booklet Pressure Roller Solenoid – (SOL5)
*
1
*
1
: B804 Only, *
2
: B805 Only
To Next Page
