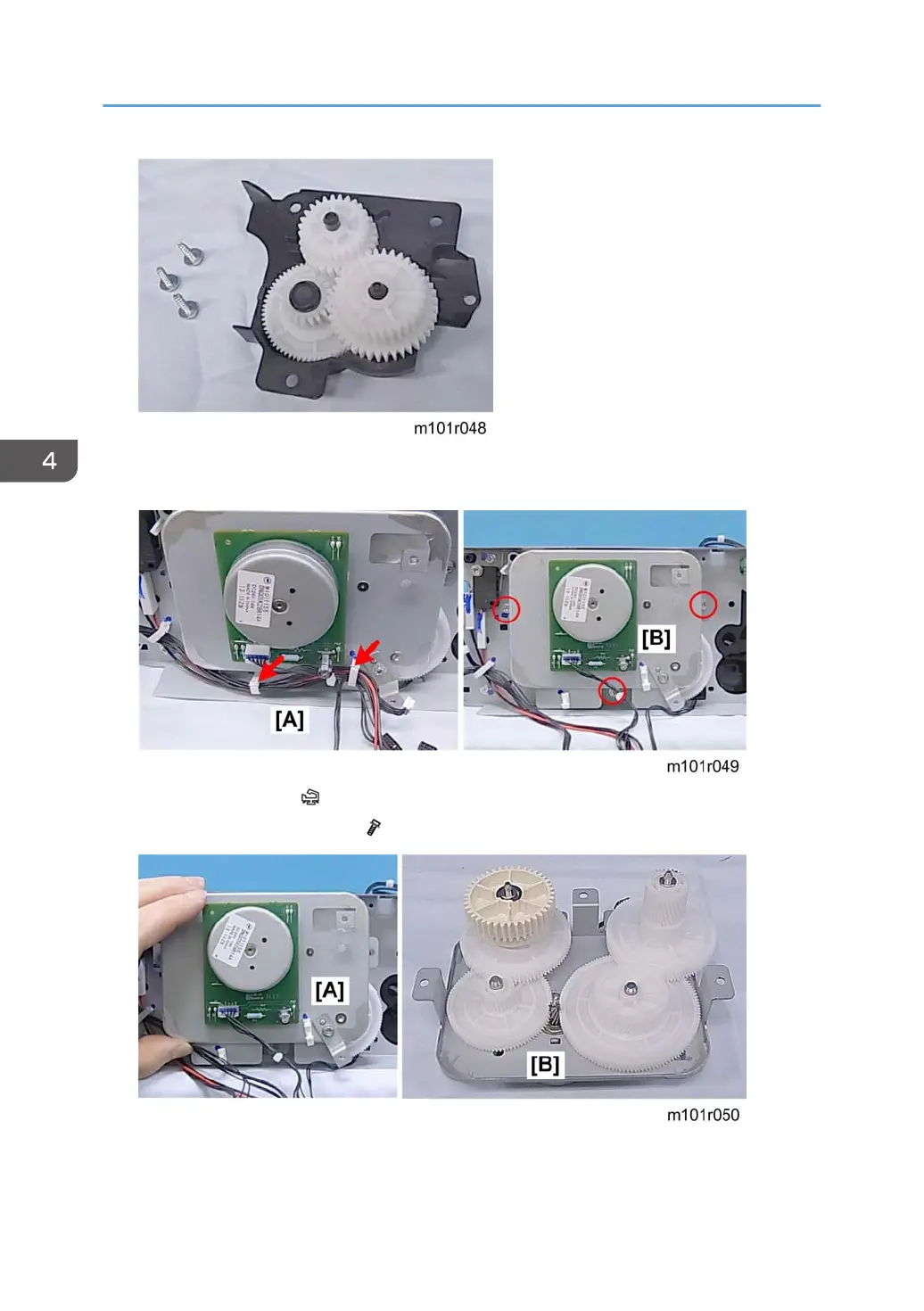

3. Remove the gear train and lay it on a flat surface as shown above to prevent the gears from falling
off.
4. Free the harnesses [A] ( x2).
5. Disconnect the motor mount [B] ( x3).
6. Remove the motor mount [A] with the motor attached.
7. Lay the motor mount [B] face down so the gears are up.
4. Replacement and Adjustments
100
