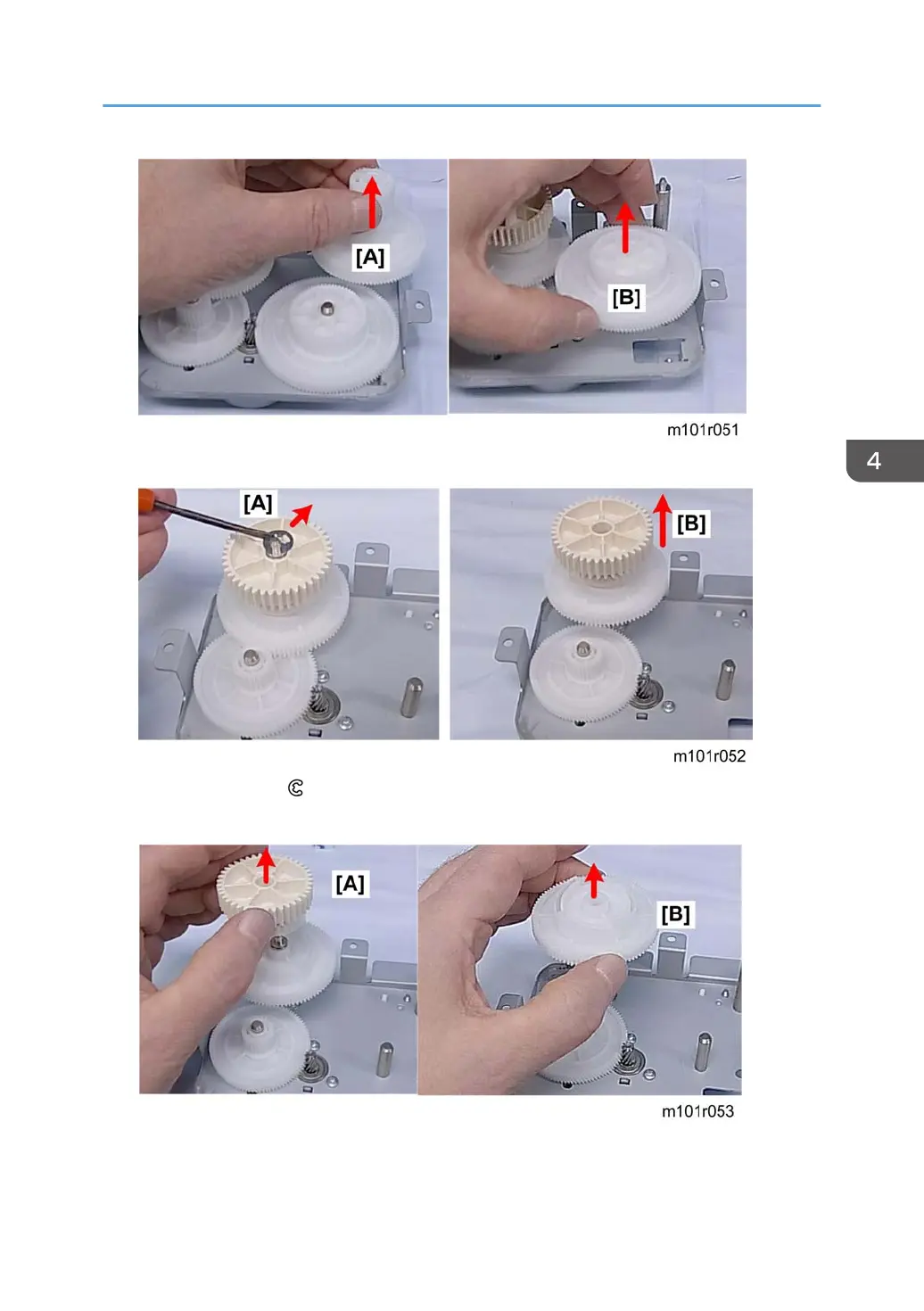

8. Remove gear [A] and then gear [B].
9. Disconnect gear [A] ( x1).
10. After the e-ring is removed, the gears [B] will spring up slightly.
11. Remove gear [A] and then gear [B].
Main Motor
101
