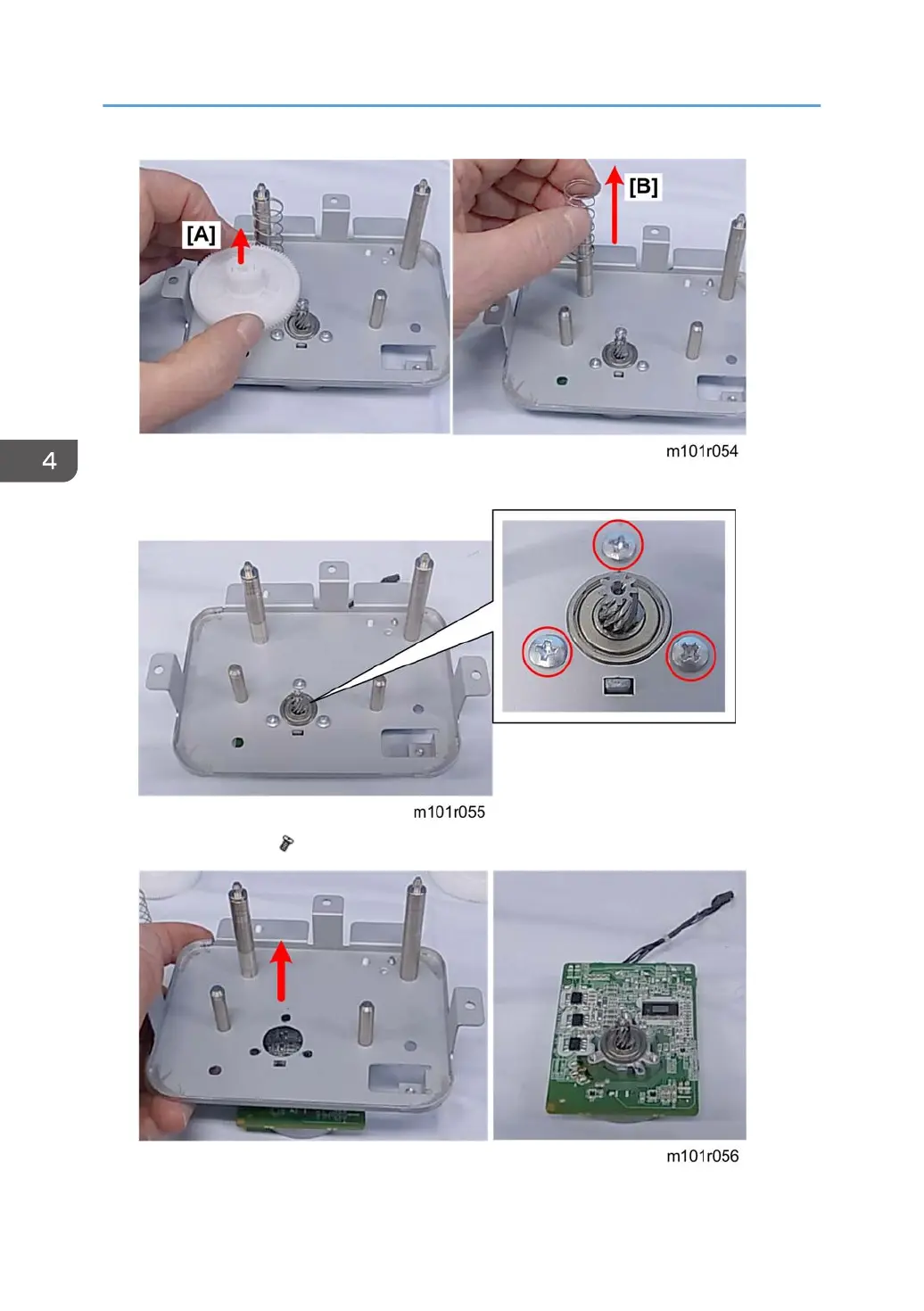

12. Remove gear [A] and spring [B].

13. Remove the screws ( x3).

14. Lift the motor mount plate off the motor.

4. Replacement and Adjustments
