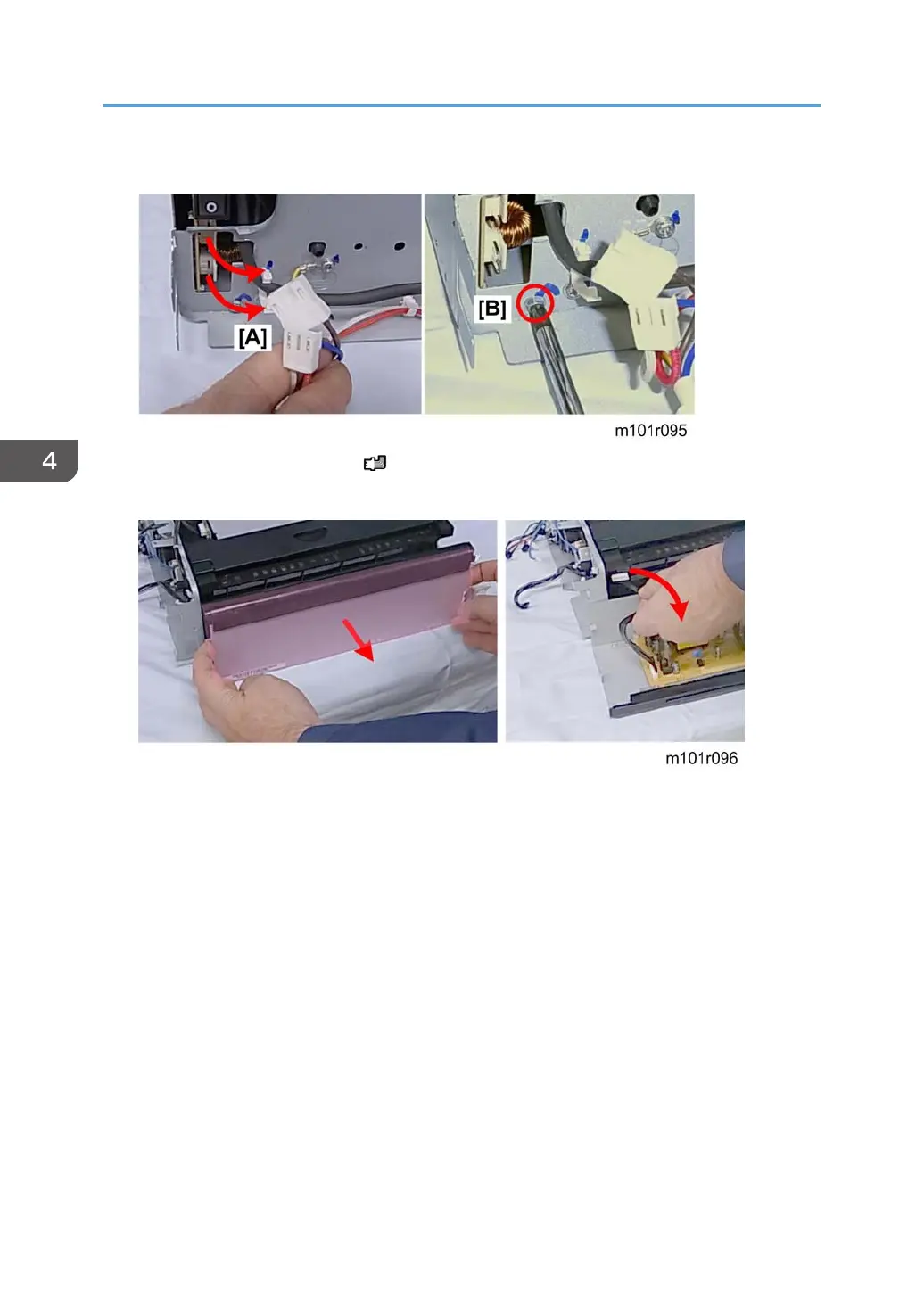

3. Remove the base of the power cord [A] from its mount.
4. Disconnect both connectors [A] ( x2).
5. Remove the screw [B].
6. Pull the rear cover a short distance away from the back of the machine, and then pull the harness
through the hole at the corner of the machine.
