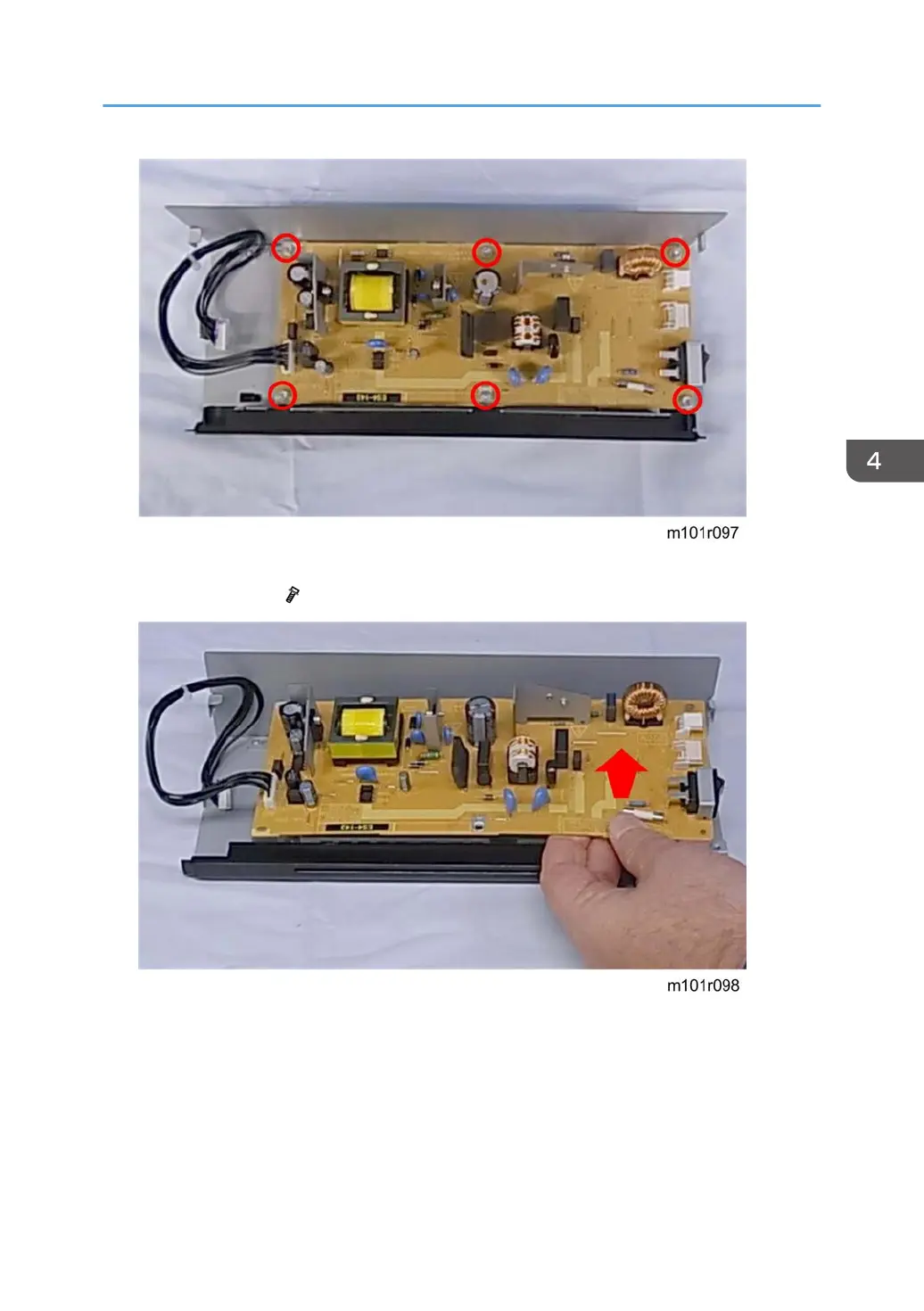

7. Lay the rear cover on a flat surface.

8. Disconnect the PSU ( x6).

9. Remove the PSU.

Boards

137
