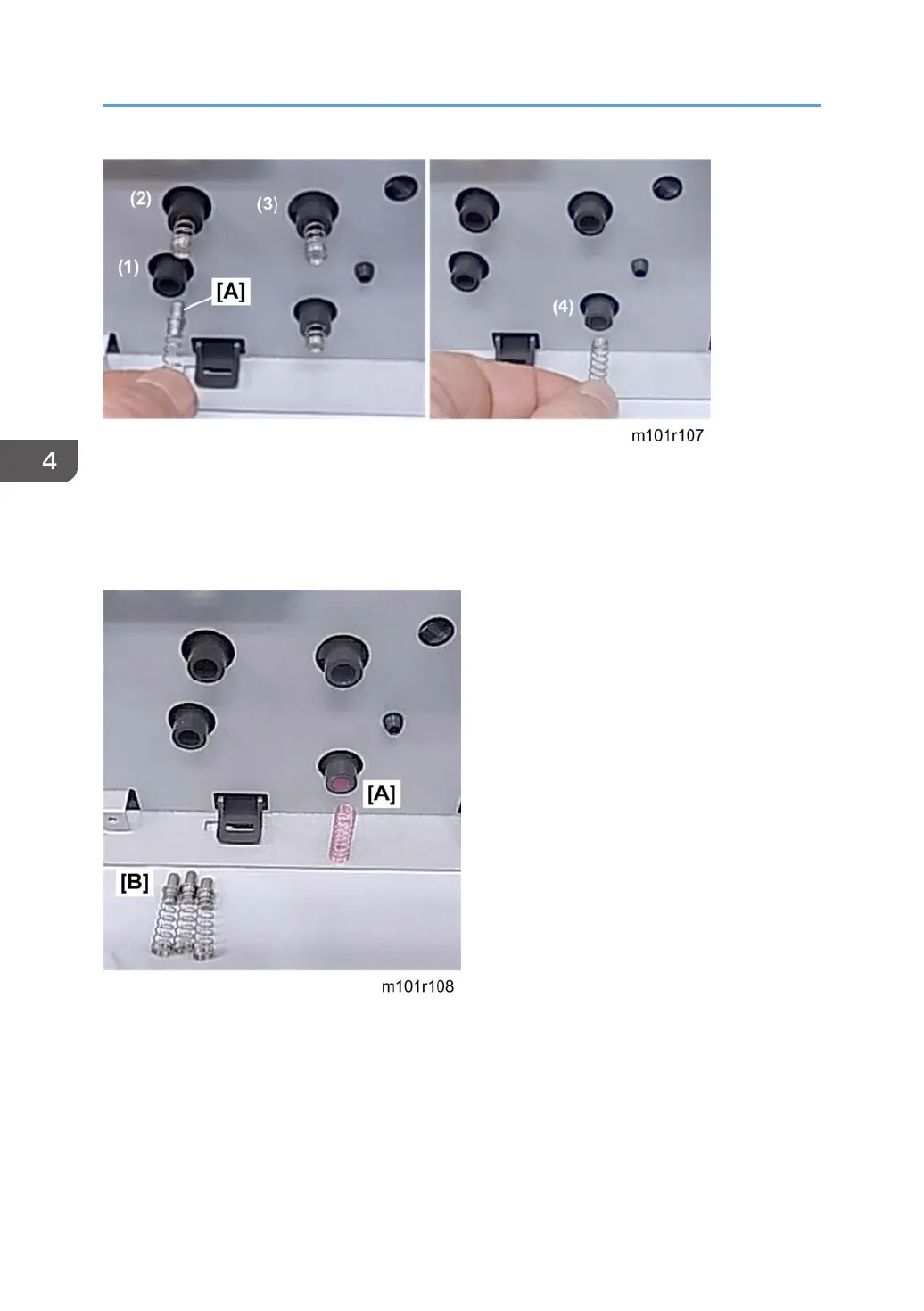

There are four AIO springs but only three terminal nodes'
• Points (1), (2), (3) have terminal nodes [A] on the end of the springs.
•
Point (4) consists of a spring only.
Re-installation
1. The empty spring is re-attached at [A], and then the other springs [B] with the terminal nodes are
inserted in the other holes.
4. Replacement and Adjustments
142
