Ricoh Aficio SP 100SF - Page 145

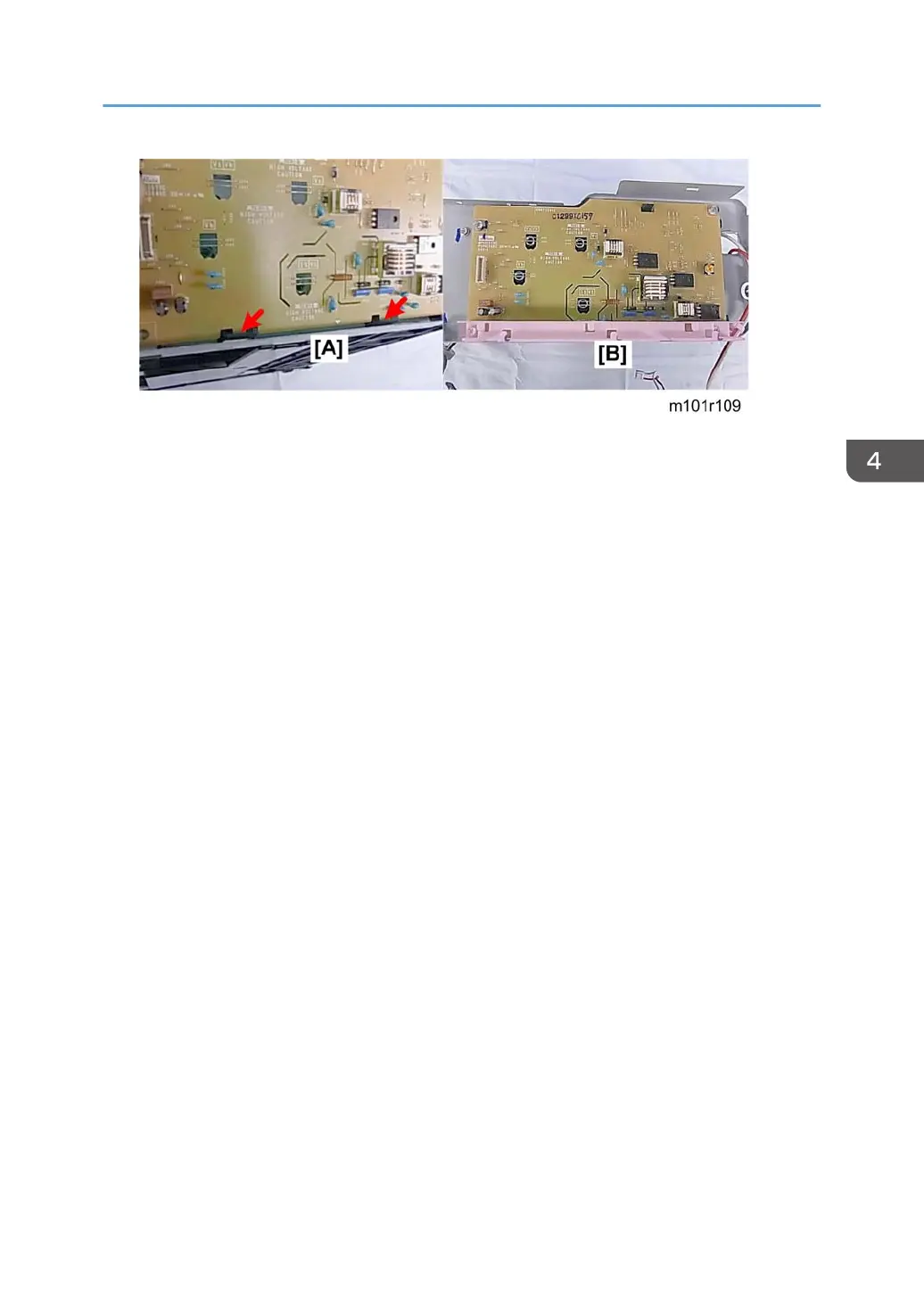

2. When you re-install the board, make sure that the edge tabs [A] are inserted into the bottom slots. If
the board is not inserted correctly, you will not be able to re-attach the harness guide [B] (the holes
will not align correctly).
Boards
143
