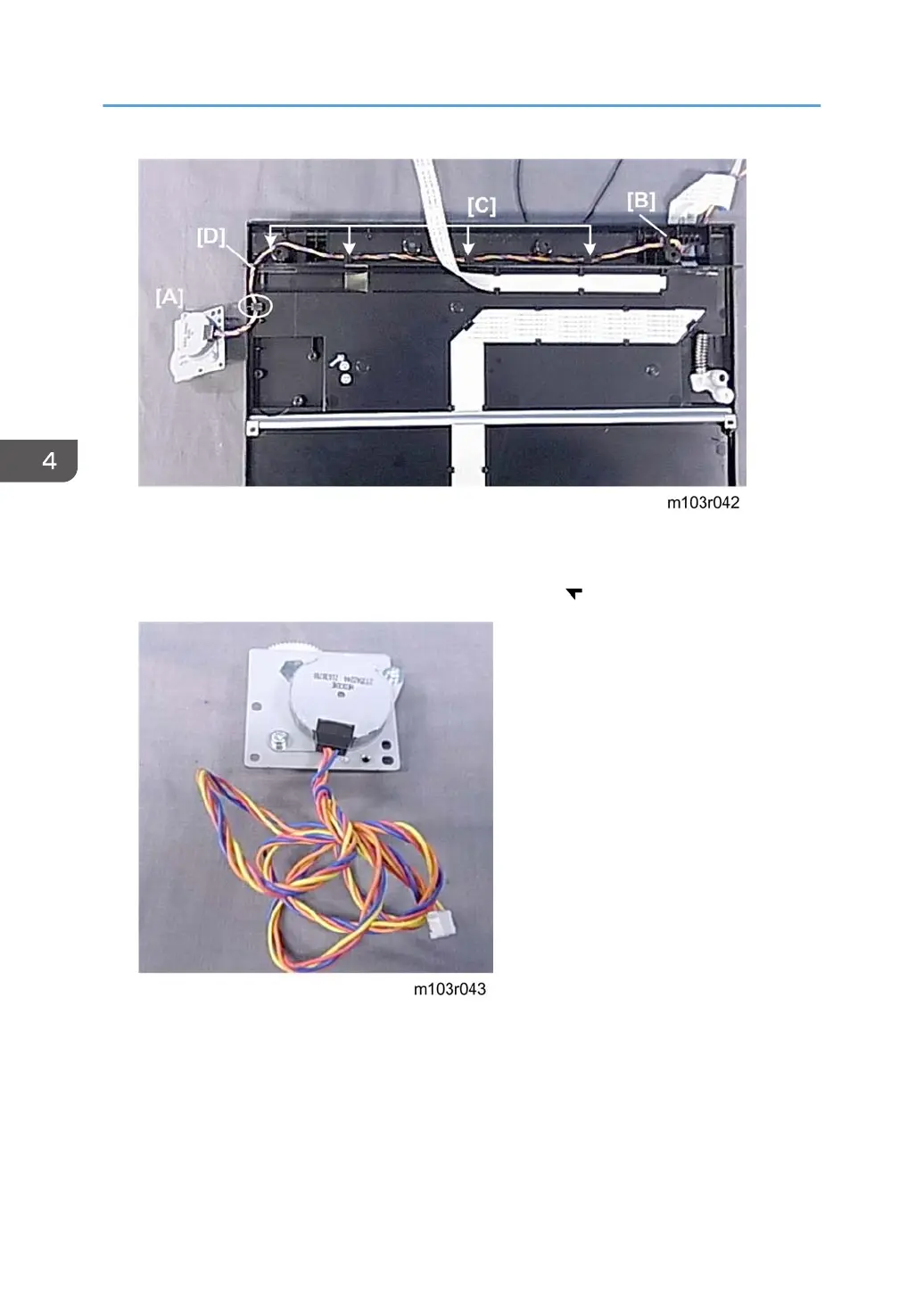

6. Remove scanner motor bracket [A] and set it aside.
7. Pull the end of the harness through the hole [B].
8.
Disconnect the harness from the harness guide [C] and at [D] (
x4)
9. Remove the motor and harness.
