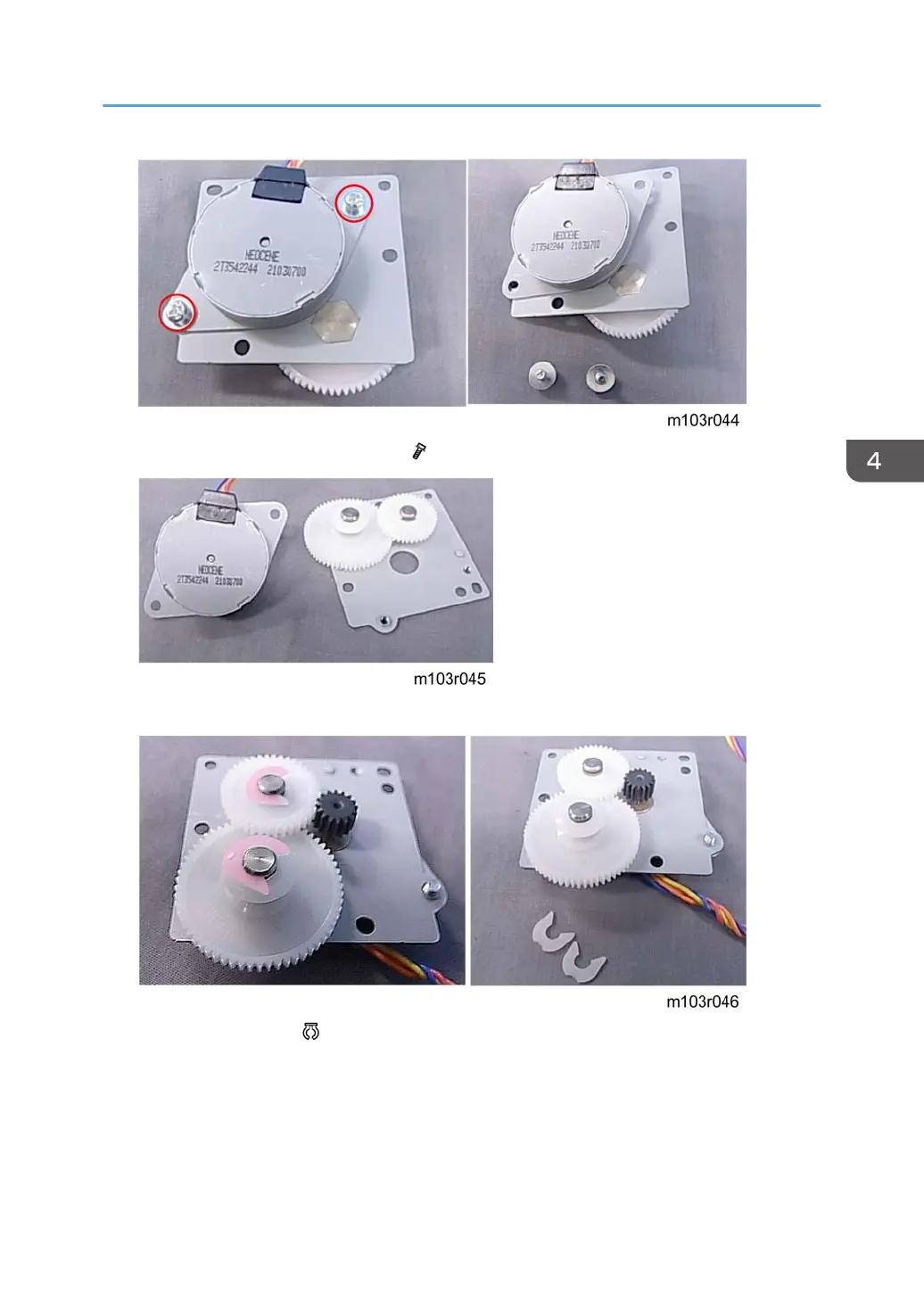

10. Disconnect the motor from the bracket ( x2).

11. Separate the motor and bracket.

12. Remove the gear clips ( x2).

Flatbed Scanner

151
